1.Overview
Fulongma Mobile Garbage Compression Station is made with advanced technology and integrates “airtightness, deodorization, compression, and storage” to meet the needs of cleanliness, beauty, safety, efficiency, and environmental protection. The characteristics of “one car with multiple boxes” and “small footprint” meet the diversified requirements of existing urban garbage disposal.
The equipment has several patents, reliable performance, and is fully adapted to the requirements of unloading compression of existing manpower trolleys, manpower tricycles, and collection vehicles with a volume of less than 3 cubic meters, and contributes to urban construction, management, and environmental protection.

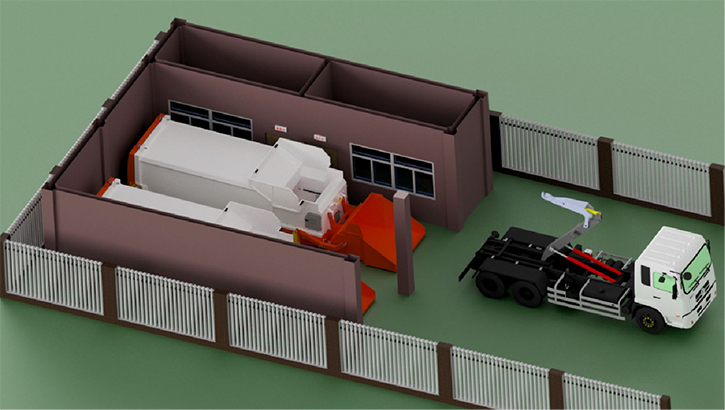

Compression station overall display

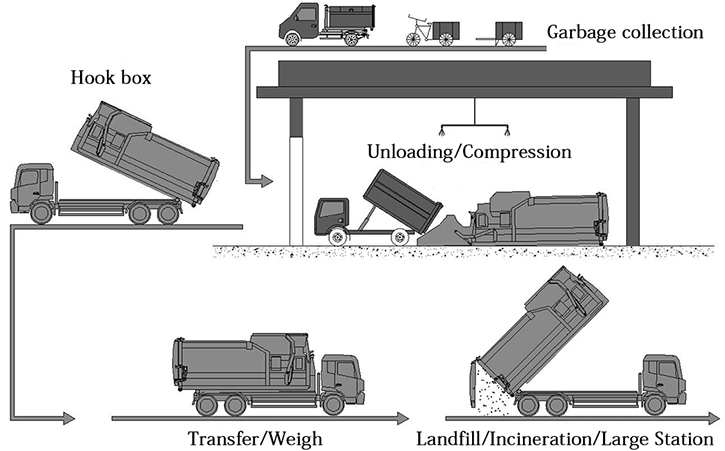

2.Work flow chart
Garbage collection trucks of 3 cubic meters and below enter the station through the feeding channel in the station, the vehicles enter the corresponding unloading position to unload the garbage into the garbage lifting hopper, and the garbage is forced into the garbage bin through the compressor to compress the garbage, and the incoming vehicle The empty box and the full box can be freely switched on-site. After the full box is filled, the detachable garbage truck transfers the filled box to the landfill plant, incineration plant, or large-scale station for processing; at the same time, the garbage station is equipped with a spray dust suppression system ( (Optional), high-pressure cleaner (optional), etc., to clean and improve the use environment, to achieve a clean, efficient and environmentally friendly garbage compression station.
3.Equipment introduction

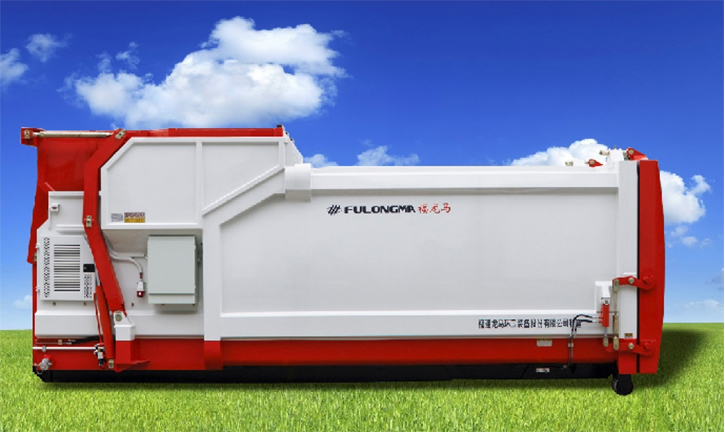

Compressor assembly

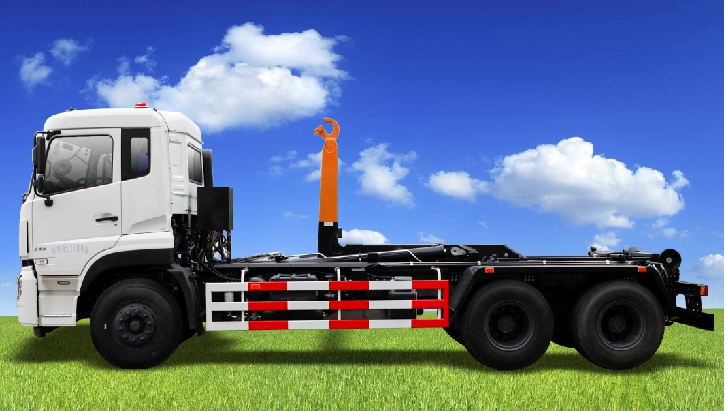

Removable Garbage Truck with Supporting Carriage

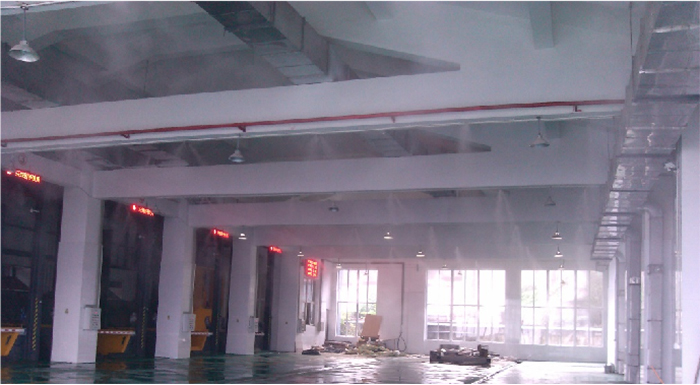

Supporting spray dust suppression system (optional)

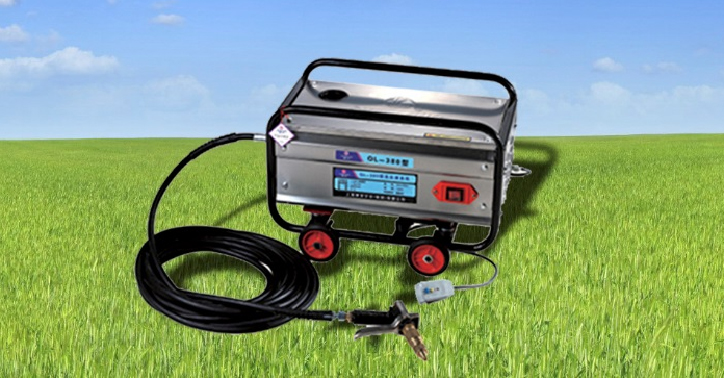

Supporting high-pressure cleaner (optional)
4.Equipment performance characteristics
Long life, safety, and reliability:
1. The box body is made by welding a high-strength weather-resistant steel plate as a whole, with a beautiful appearance, lightweight, high structural strength, corrosion resistance, and long service life.
2. The automatic buffer device of the feeding mechanism with independent intellectual property rights solves the problem of excessive noise during the feeding work of the mobile garbage compression box and easy damage to the garbage can. (Patent: “Automatic Buffer Device for Feeding Mechanism of Mobile Garbage Compression Box” Patent No.: ZL 2010 2030 1596.6)
3. The side feeding door safety device stops the system when there is maintenance personnel in the compression chamber, which not only avoids casualties when there are people in the trash bin, and improves the safety of operation. (Patent: “Mobile Garbage Compressor Safety Device” Patent No.: ZL 2010 2030 1580.5)
High efficiency and energy saving:
1. The use of a double-pump working hydraulic system greatly improves the operating efficiency of the compression equipment while reducing energy consumption.
2. The lifting hopper buffer system with independent intellectual property rights ensures the speed and work efficiency of the hopper ascending and descending process; at the same time, it reduces the speed of the ascending end and descending end, avoiding the collision and impact of the hopper on the ground. The phenomenon that the box tops up and pulls forward appears. (Patent: “A hydraulic system for buffering at the end of the trash bin hopper stroke” patent number: ZL 2016 2008 6854.0)
3. The hydraulic system device with independent intellectual property rights is adopted. This device solves the problem that the hydraulic system of the large iron bucket feeding at the same time cannot be carried out at the same time due to the differential compression operation and the feeding operation. The garbage collector and the compressor operator wait for each other and work. The problem of inefficiency. (Patent: “Hydraulic System with Large Iron Bucket Compression Trash Can Compressing and Feeding at the Same Time” Patent No.: ZL 2015 2090 2369.1)
4. Adopting a fast unloading device with independent intellectual property rights, which solves the problem that garbage is hard to unload due to freezing during low-temperature operation. (Patent: “Domestic Garbage Quick Unloading Device” Patent No.: ZL 2014 2056 3349.1)
Environmental protection:
1. The design of independent sewage discharge is adopted to avoid excessive sewage in the tank and reduce the burden on the staff to avoid secondary pollution.
2. Adopting an adjustable rear door sealing device with independent intellectual property rights, avoiding the secondary pollution of dripping, spilling, and leakage of garbage during the transfer process, and at the same time improving the service life of the rubber strip. (Patent: “Adjustable Back Door Sealing Device for Compressed Trash Bin” Patent No.: ZL 2013 2072 6590.7)
