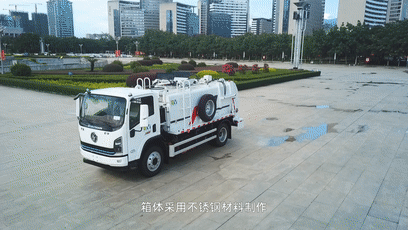

The pure electric wet waste collection truck is a new type of wet waste collection truck developed by Longma Sanitation. It adopts the second-class chassis of pure electric vehicles to achieve zero-emission. It is specially used to collect and transport kitchen garbage. The advantages of high material efficiency, etc., fully meet the needs of the existing food waste collection and transportation.
The overall frame structure, large curved side arc box body, strong anti-deformation ability, long service life, strong loading capacity; the box body panel is made of all stainless steel materials to ensure that it will not be rusted throughout the year.
The liquid level observation window on the right side of the box facilitates the observation of the garbage loading in the box and controls the fullness of the garbage box.

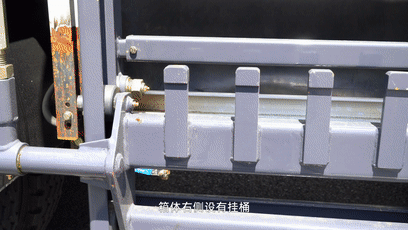

The lifting mechanism is arranged on the right side of the box, which can lift standard trash bins of 120 and 240 liters. The lifting mechanism and the upper cover form a linkage mechanism through a connecting rod and a swing arm, and the tilting angle of the trash can is adjustable to ensure that the trash is dumped cleanly. It is also equipped with a feeding buffer device, the feeding speed is stable, and the lifting structure anti-drip device, which effectively avoids the problem of sewage dripping during the lifting process, reduces secondary pollution, and is environmentally safe.

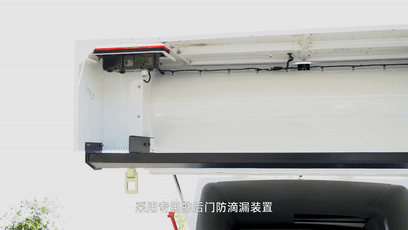

The rear door adopts a multiple sealing design, combined with an adjustable locking mechanism and an anti-drip device, which can bear the swill leaking when the rear door is not sealed, with a simple structure, environmental protection, and safety.

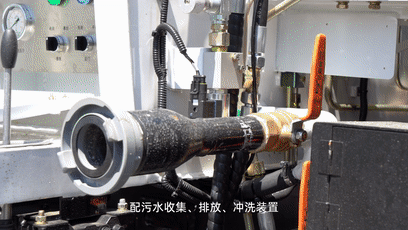

Equipped with sewage collection, discharge, and flushing devices, it can initially realize solid-liquid separation, drain and collect excess sewage, and discharge it uniformly. It can also be connected with a fire hydrant pipe to flush the sewage tank, which is environmentally friendly and safe and improves the loading capacity and maintenance.

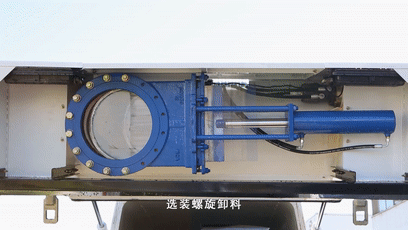

Optional weighing system, sewage tank heating system, spiral discharge device to meet the needs of different areas of operation; optional loading capacity reminder and alarm device, improve the automatic mode of loading, push plate discharge, and improve the intelligence and humanity of the whole vehicle Level, reduce labor intensity.
