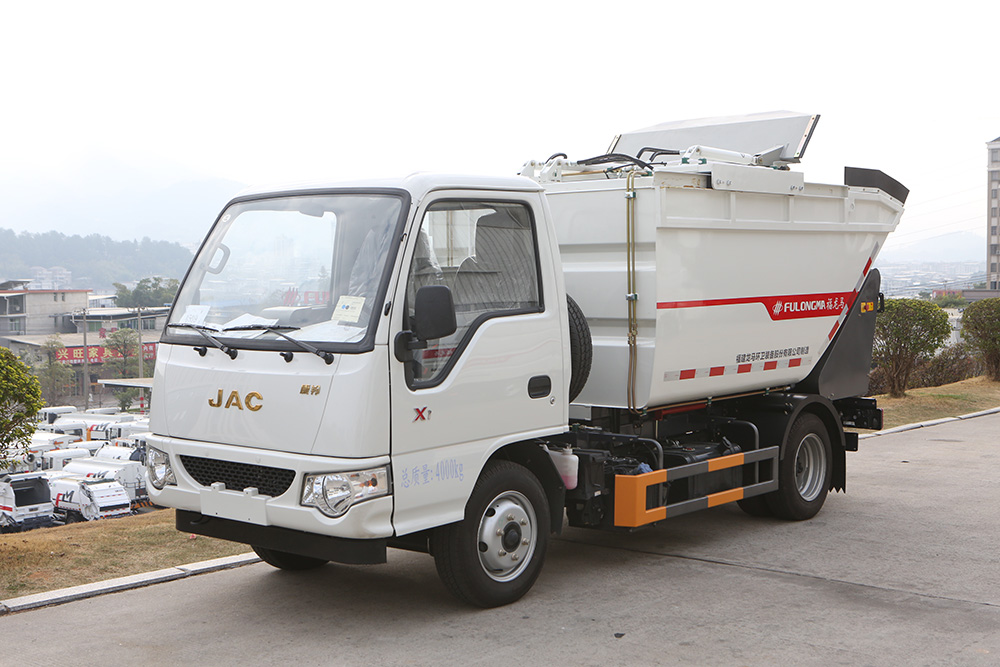

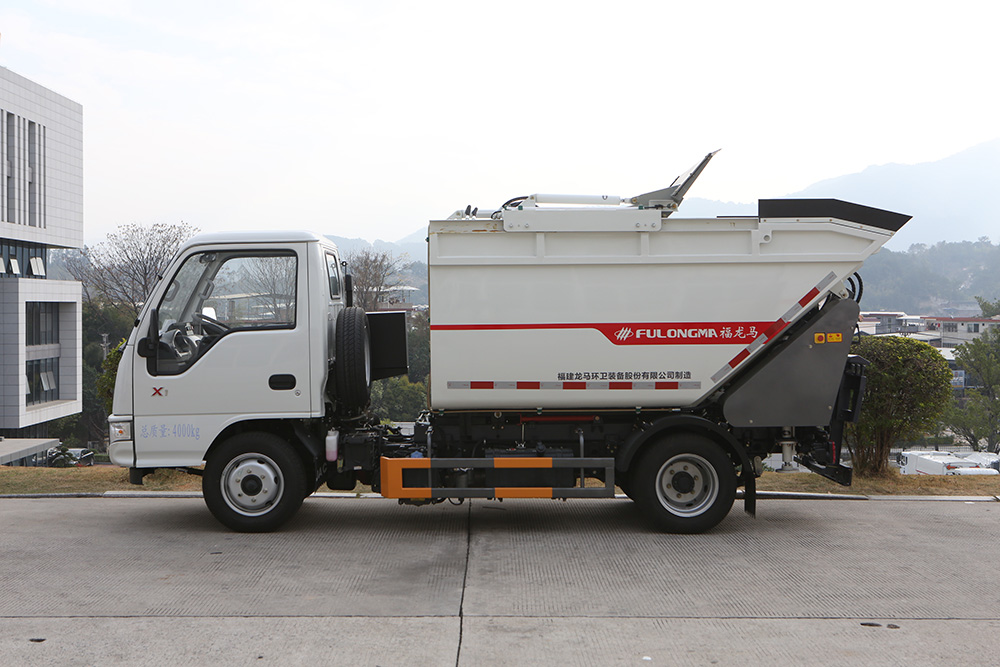

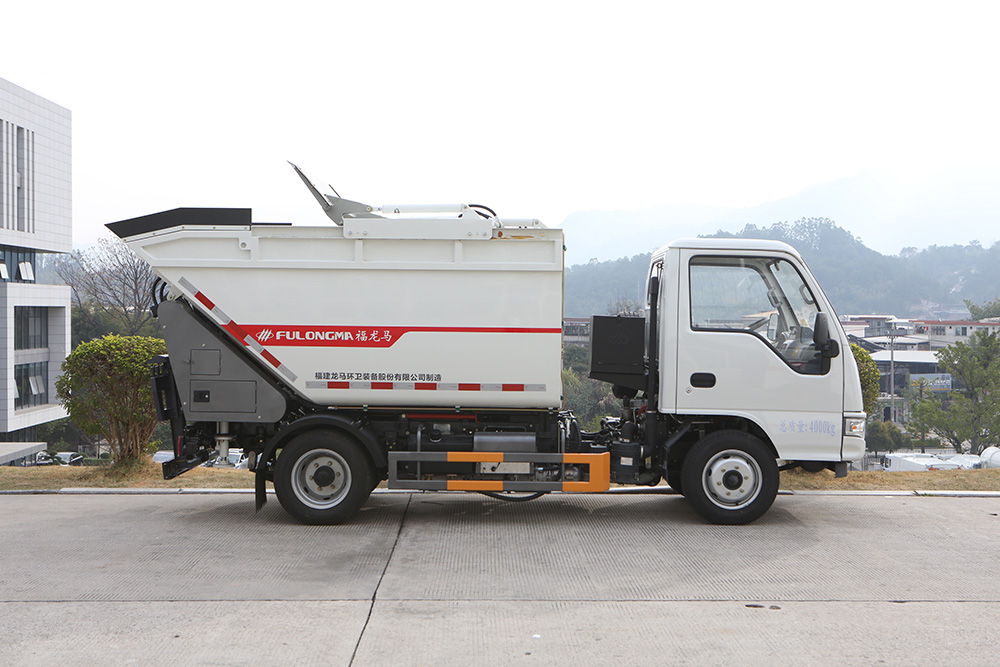

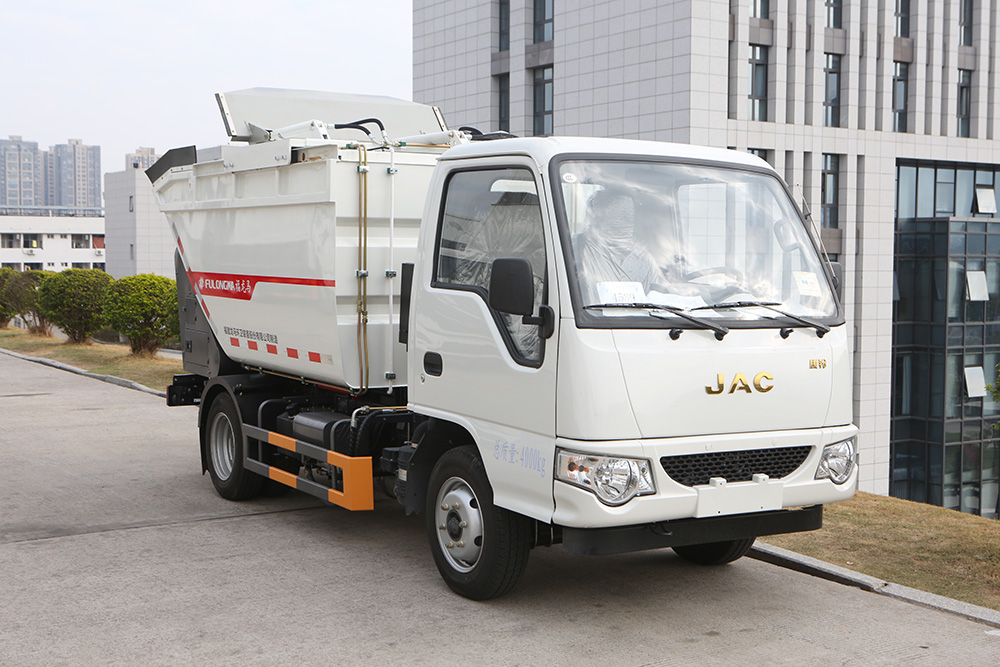

FULONGMA self-loading and unloading garbage trucks can mechanize and automatically load and unload garbage, realize the sealed transportation of garbage, effectively prevent the pollution of garbage to people and the environment, and improve the transportation efficiency of vehicles. It is a new type of sanitation vehicle that is safe, energy-saving, environmentally friendly, and efficient.
01. Structural composition of self-loading and unloading garbage truck

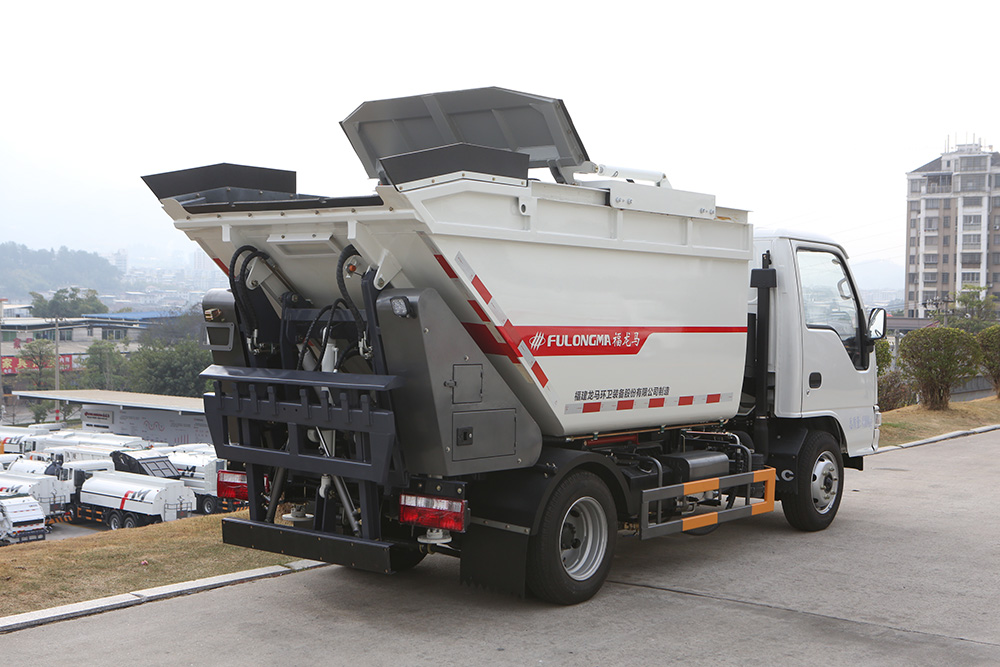

The upper cover and the rear cover are hydraulically opened and closed. In order to ensure the self-unloading of viscous media, a scraper device is installed in the garbage bin. Hydraulic push is adopted, and the remaining hydraulic system adopts high-quality lifting cylinders, operating valves, ferrule joints, high-pressure hoses, and high-pressure steel pipes for reasonable installation. At the same time, reliable fixing devices are arranged to ensure that there is no leakage for a long time. , Easy maintenance and prolonged service life.
The waste bin is made of a high-quality steel plate produced by WISCO, and the bottom plate of the box can be equipped with stainless steel plate to ensure the smoothness of the medium during self-unloading. A push plate is installed in the sealed garbage box to ensure its clean discharge.
02. Working principle of self-loading and unloading garbage truck
The self-loading and unloading garbage truck product is a garbage transport vehicle that is used in conjunction with the compression garbage station. When the vehicle is docked with the compression box of the station, the hydraulic system set in the middle of the car body is first connected to the rear door. After the rear door is automatically opened and docked with the station, the hydraulic device of the compression station pushes the compressed garbage into the garbage compartment. Then the garbage truck automatically closes the rear door and leaves with the garbage. When the garbage truck leaves, after the rear door is automatically opened, the car body relies on the lifting mechanism composed of the oil cylinder, the triangle plate, and the pull arm set on the subframe, so that the car body rotates 55 degrees around the rear end reversing axis, and the garbage is poured out. outside the box. Then the car body is lowered to its original position, and the rear door is automatically closed.
03. Performance characteristics of self-loading and unloading garbage trucks
1. High degree of automation
The product has the characteristics of convenient loading and unloading of garbage, a high degree of automation, and high work efficiency. A video monitoring device for operation monitoring is installed in the cab to monitor the status of garbage loading and unloading operations, and an automatic noise detection recorder and a data storage and online transmission device are installed.
2. Advanced and reliable hydraulic operating system
The hydraulic control system of the self-loading and unloading garbage truck adopts the three-position four-way electromagnetic reversing valve imported from Italy, which is characterized by small size, long service life, reliable performance and convenient operation. The rubbish in the obturator can be automatically removed. That is, when unloading, the operation of the scraper of the stuffer can be controlled on the side of the cab or the carriage, and the garbage in the stuffer and its hopper can be removed.
3. Lightweight design of the car body, large load capacity
Manganese steel can be used for the body material of the self-loading and unloading garbage truck body instead of the traditional carbon steel, and its dead weight is more than 20% lighter than that of the same kind of body. Therefore, the product design is conducive to energy saving and emission reduction, reduces fuel consumption for users, and reduces the use cost of the product.
4. Advanced design of back door mechanism
The structure is compact and reasonable, and the occupied width is small, making more space for the width of the carriage, making the width of the carriage larger, and making it easier for the driver of the car to connect with various garbage compression stations, which is beneficial to improve work efficiency and avoid The accident occurred when the train and the station docked.
5. Dump system
It adopts the combined design of an oil cylinder and rod system with advanced performance. The combined dumping mechanism of the oil cylinder and rod system has the advantages of good sealing, no leakage of hydraulic oil, long working life, reliable performance, and good stability. Especially because the product is in poor road conditions at the dumping site, because the oil cylinder will not protrude from the lower part of the chassis frame of the car, compared with the direct push oil cylinder, its passing performance is better.
6. The appearance of the whole vehicle is beautiful, easy to clean and self-clean
The design of the compartment of the urban self-loading and unloading garbage transporter adopts a door-frame skeleton structure, which is more economical than the traditional dump truck box-type skeleton structure, and has a beautiful and smooth vision; because there is no horizontal skeleton in the compartment, it is not easy to retain dirt; especially the top, It avoids that the rainwater in the box of similar models cannot be drained out, which is easy to cause the lack of accelerated corrosion on the top of the car. The external surface materials of this product all adopt surface treatment processes such as phosphating, the topcoat has strong adhesion, and the surface is corrosion-resistant and smooth, which is convenient for vehicle cleaning, and its self-cleaning performance is much better than similar models.
7. Large carrying capacity and strong environmental protection
The self-loading and unloading garbage truck product adopt a fully sealed structure, and the sealing components are made of high-quality materials with long service life, and the truck transports garbage that has been compressed and processed. Under the same volume, the load quality is increased, and there is no sewage overflow, will not pollute the road, and completely eliminate secondary pollution in the entire operation. Low operating noise. The product of urban self-loading and unloading garbage trucks should improve the machining accuracy and assembly quality through the optimized design of the hydraulic system and loading mechanism, so as to achieve the purpose of reducing the noise of the vehicle operation.
