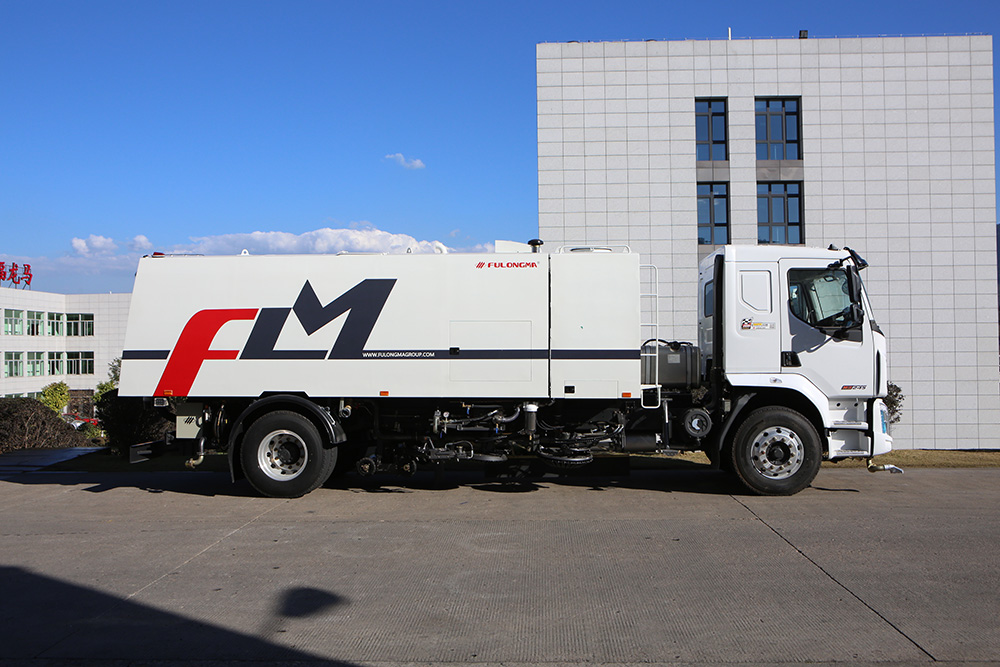

The washing and sweeping truck is composed of box assembly, frame platform, washing and sweeping device, dust suction device, power system, high-pressure water system, low-pressure water system, sprinkler system, hydraulic system, electrical system, air system, etc. The structure of the working device adopts the arrangement of two central sweeping discs + central wide suction nozzle + V-shaped spray bar.
01. Functional purpose of washing and sweeping truck
The sweeper combines the characteristics of traditional road sweepers and high-pressure cleaning vehicles. It has the functions of pavement cleaning, road sweeping, sewage recycling, curb cleaning, curb facade washing, low-pressure washing, spray dust reduction, and handheld spray guns. The machine has rich functions, reliable operation, and high operating efficiency, and can be widely used in:
Cleaning operations on urban roads, squares, airports, docks, bridges, and other road surfaces;
Road curb cleaning, curb facade washing;
Fixed-point cleaning of road signs, billboards, etc.;
Sprinkle water on the road to reduce dust and moisturize.
02. Advantages of washing and sweeping vehicles
The National VI chassis of Dongfeng Co., Ltd. is selected, with mature technology, superior performance, and stable and reliable quality.
9 operation modes, automatic memory storage, one-button start and stop, a high level of automation, and intelligence.
Remote fault diagnosis, the regular automatic push of maintenance information.
High-efficiency air duct system, strong suction, and cleaning rate of 98%.
Intelligent operation
03. Technical characteristics of truck washing and sweeping
Intelligent control system: intelligent voice broadcast and fault alarm-the operating system monitors the running status of the whole vehicle in real-time, with voice avoidance reminder, voice fault report, water level detection protection, safety pole detection protection, motor overload protection, cabinet The back door does not open, etc. alarm.
Remote fault: product fault information is automatically uploaded to realize remote fault cause analysis, elimination, and statistics; at the same time, the system automatically pushes maintenance information on a regular basis according to vehicle operating time, driving kilometers, and maintenance requirements, reminding users of maintenance and greatly improving the level of intelligence and Product maintainability.
Intelligent operation: It adopts a bus-type hand-held operation box with a memory storage function for operation, which is simple and convenient to operate. The system adopts a one-key start-stop design and has a high level of automation.
Ergonomics technology: The operating system monitors the running status of the whole vehicle in real-time, and the display screen and the vehicle operation are synchronized with animation to realize the effect of man-machine interaction and convenient operation and observation.
04. Washing and sweeping truck box assembly
Optimize the layout of each device, and some clean water tanks are independently arranged in front of the power system to reduce the impact of power system noise and electromagnetic radiation on the cab.
The other part of the clean water tank is integrated into the trash bin to improve the space utilization rate so that the volume of the trash bin can reach 7m³ and the volume of the water tank can reach 9m³.
A large flow of high-pressure nozzles is set in the trash can, which can quickly flush the trash can and realize the self-cleaning of the box.
The clean water tank and waste bin are made of stainless steel, which has excellent anti-corrosion performance and improves the service life of structural parts.
Triangular bending shape, top folding edge transition, avoid the angular perspective effect, the overall appearance is novel and atmospheric.
05. Washing and sweeping device for truck washing and sweeping

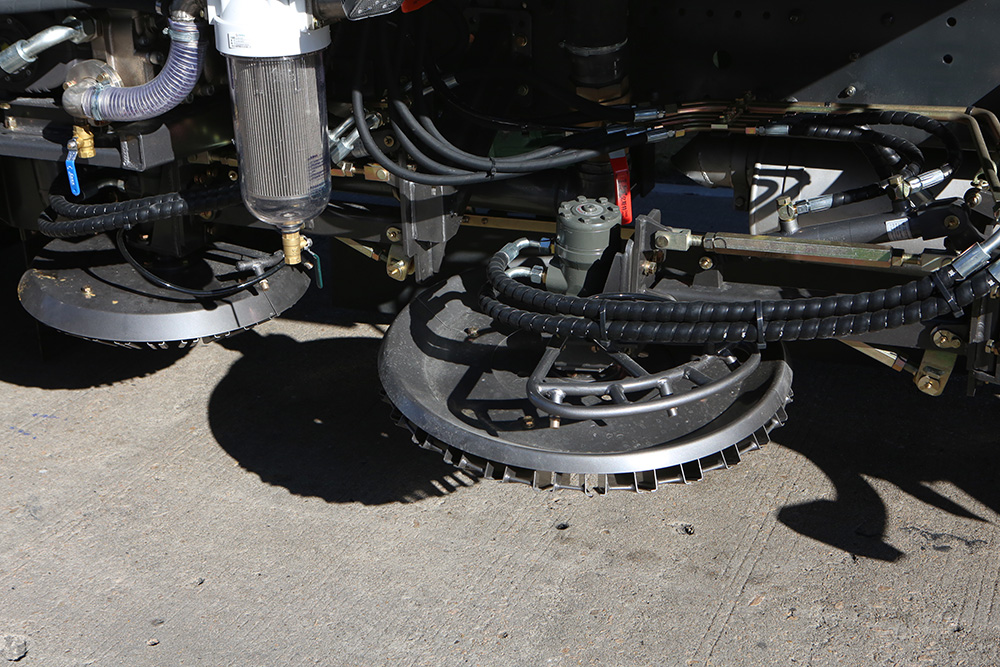

Anti-collision avoidance design: The left and right sweeping disc and spray rod structure have automatic obstacle avoidance protection and reset functions, and can realize automatic avoidance when encountering strong obstacles.
High wear-resistant brush: Through independent research and development, adjust the proportion of polypropylene, polyethylene raw materials, inorganic fillers, and additives, design and develop a brush formula with excellent friction and wear properties, which can double the service life and reduce the user later uses costs 50%.
