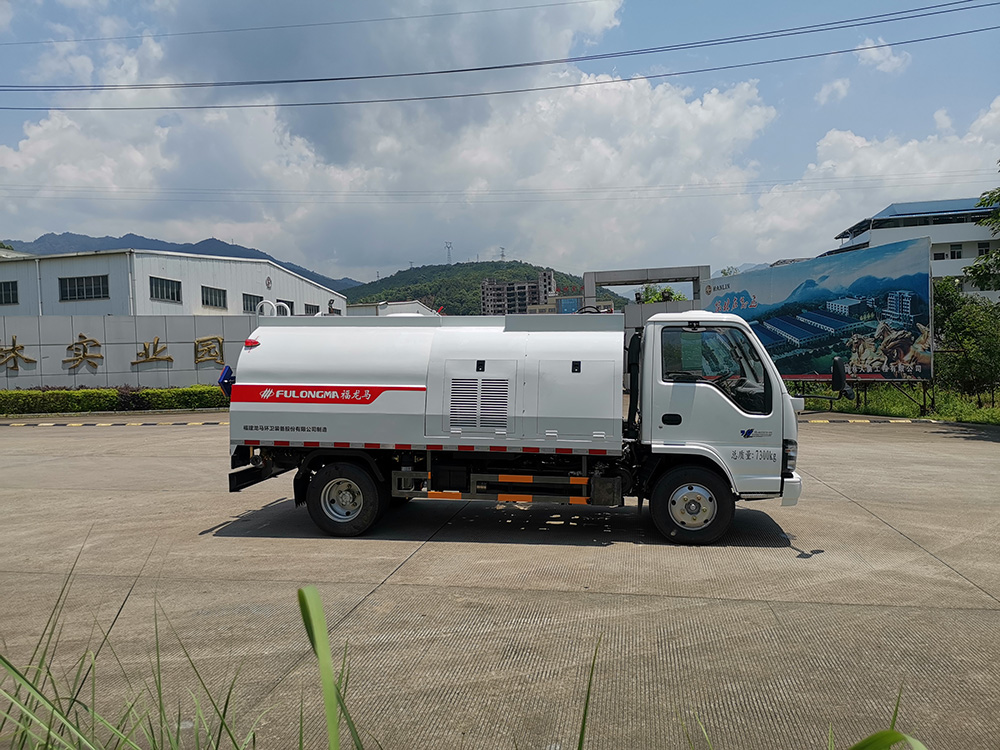

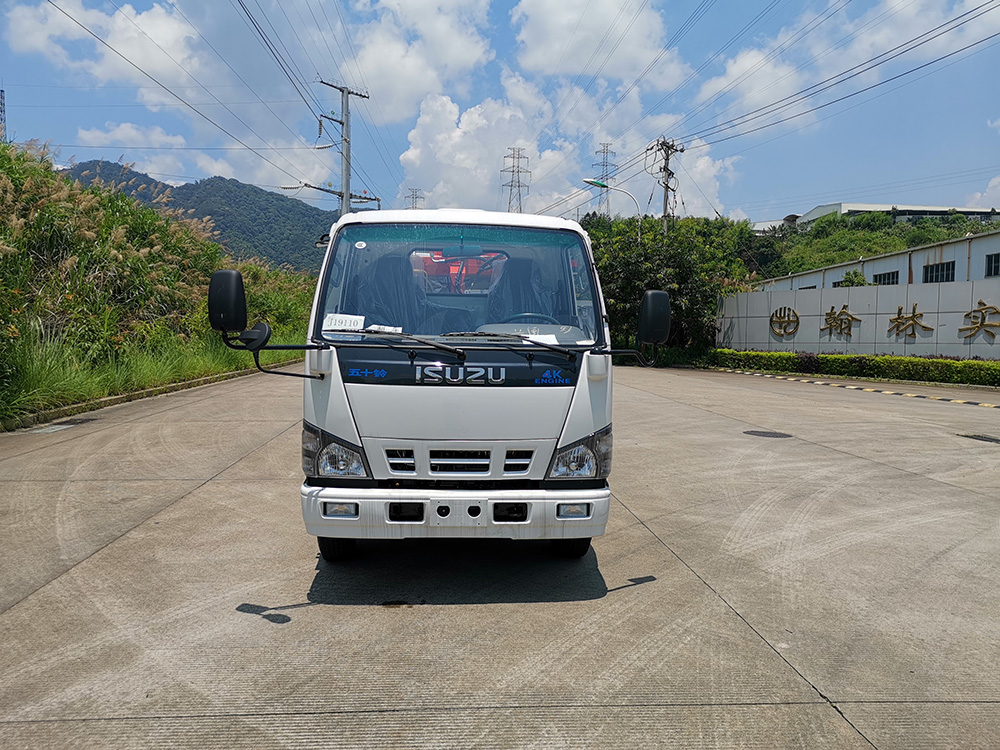

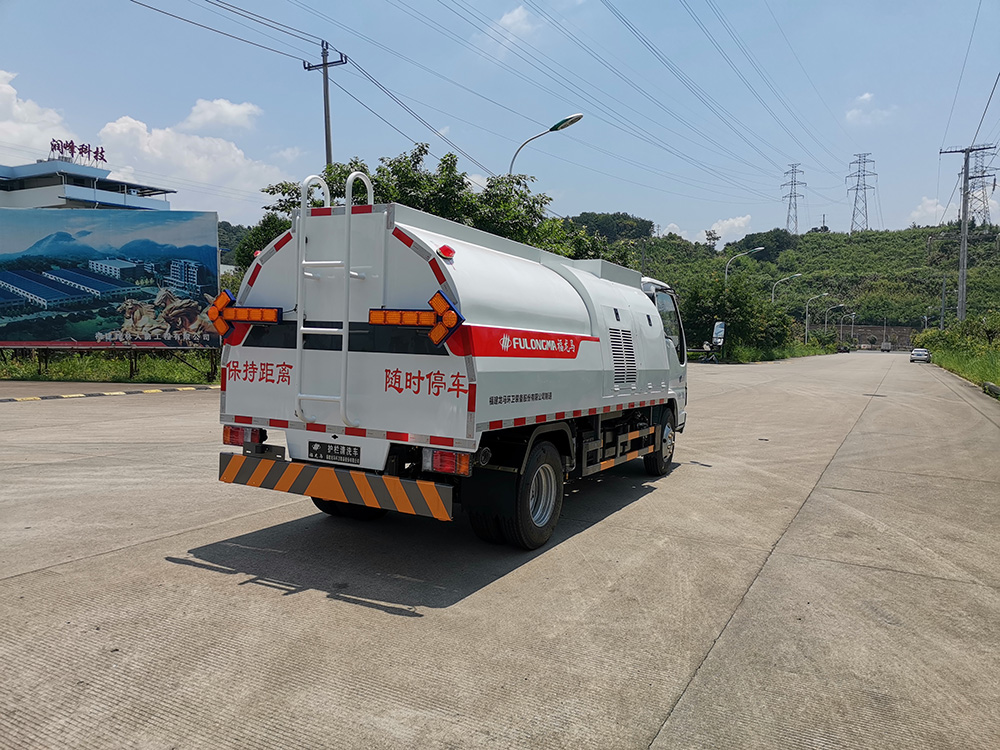

FULONGMA guardrail cleaning vehicle is a product specially designed and developed by absorbing the advanced technology of similar foreign products and combining with the specific conditions of my country’s highways. The equipment has the characteristics of convenient operation, flexible action, reliable quality, high cleaning efficiency, and good cleaning effect. It is an ideal product for highway facility cleaning. Because the equipment can be installed on the customer’s existing water tanker and use the existing water tank of the water tanker; there is no need to purchase a chassis and water tank, which greatly saves the customer’s cost of purchasing a special cleaning tank, and at the same time does not affect the water tanker at all. normal use function. Since the product was produced in 2001, it has been favored by many domestic customers. In 2002, the product won the Beijing Major Scientific and Technological Achievement Award.
01. Working principle of guardrail cleaning truck

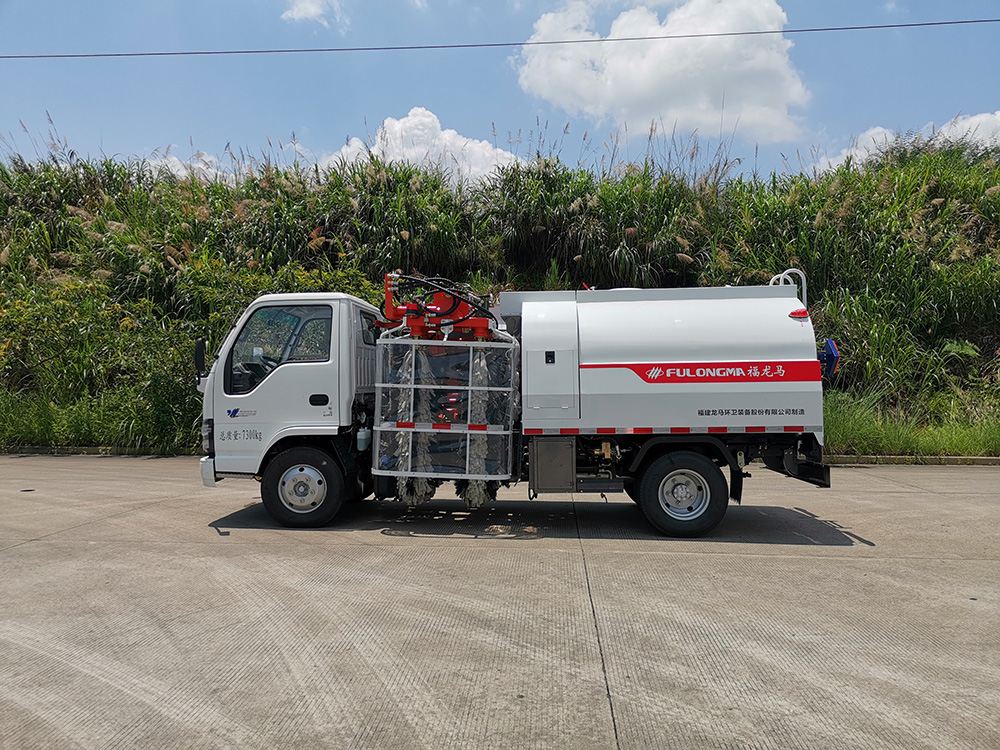

The guardrail cleaning truck uses the power take-off as the power to drive the hydraulic pump. The hydraulic flow and pressure output from the hydraulic pump reaches the oil cylinder, hydraulic motor, and scissor hydraulic lifting platform through the distribution valve, and respectively control the rotation and lifting of the cleaning arm and the rolling brush. The cleaning of the high-pressure water gun and the lifting action of the scissor-type hydraulic lifting platform can complete the cleaning of the guardrails, road signs, and toll greenhouses on both sides of the highway or municipal road. The scissor-type hydraulic lifting platform can realize the function of a small aerial work vehicle.
02. Performance characteristics of guardrail cleaning vehicle
1. No auxiliary engine is used as power, which effectively saves the cost of use and reduces the failure rate.
2. The humanized folding arm structure design makes the operation more flexible, easy to replace the working device, and complete more maintenance work.
3. Double brush heads, three columns of water, five times of spray cleaning, the cleaning effect is very ideal.
4. Multiple functions. Can complete brushing, flushing, and aerial work at the same time.
5. The cleaning arm can be rotated left and right, and the cleaning height can be adjusted up and down, which is convenient for cleaning the guardrails and road signs on both sides of the road, and the cleaning range is large.
6. The water tank of water wheel is used as the water storage tank, which can ensure long-distance cleaning, and the water pressure and flow can be adjusted.
7. The bristles are made of several multi-sided and extremely soft high-strength polypropylene materials, which can ensure clean cleaning and are not easy to damage the bristles and the working surface.
8. The high-pressure water gun is used to wash the outside of the guardrail, street signs, and toll booths.
9. The product performance is superior and the usage is very good.
03. Guardrail cleaning truck working video
