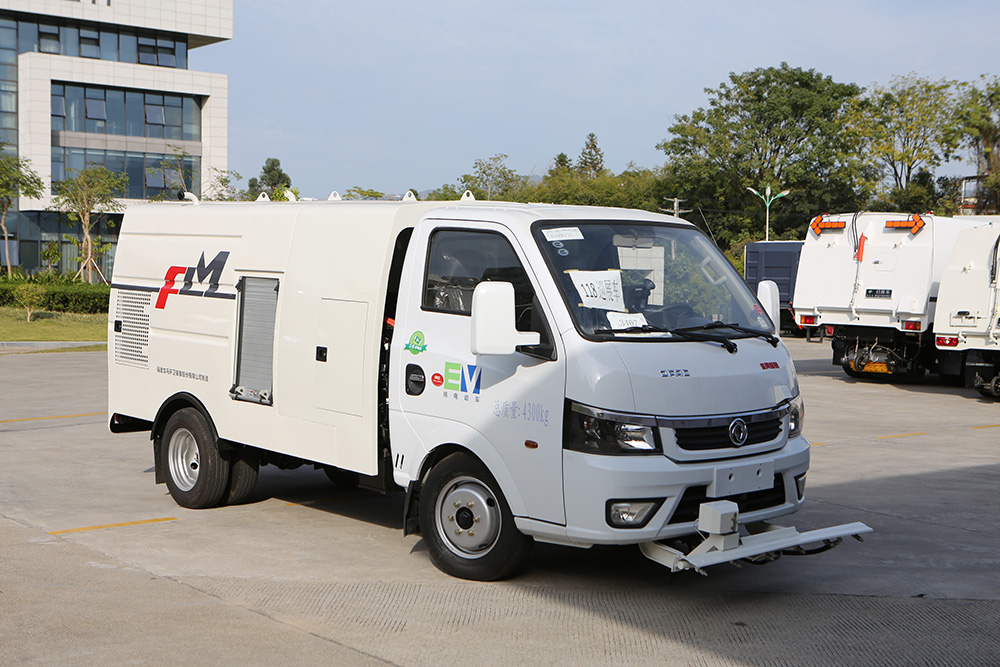

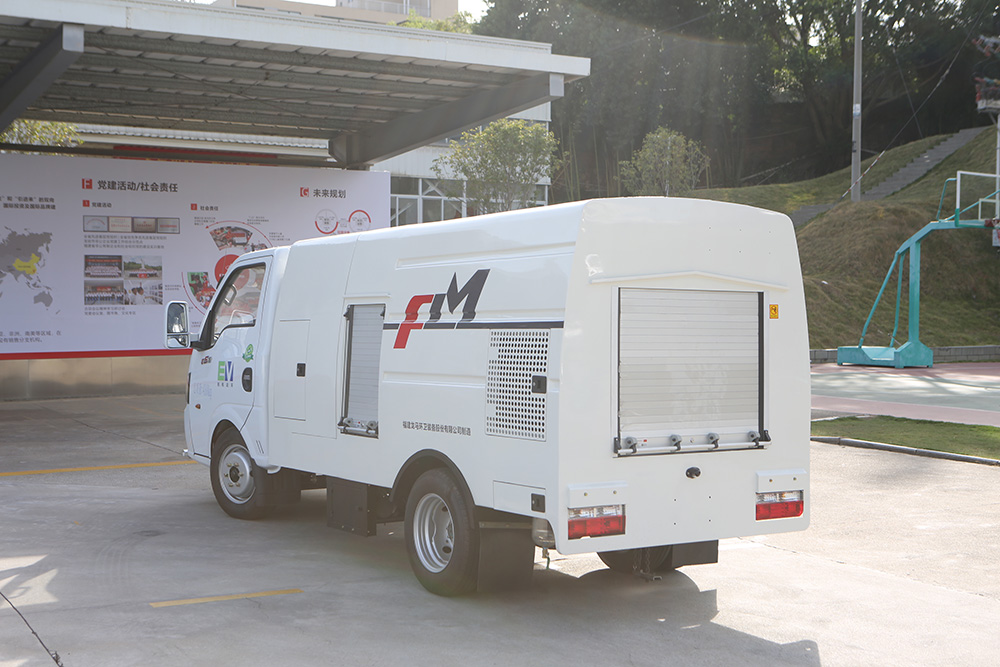

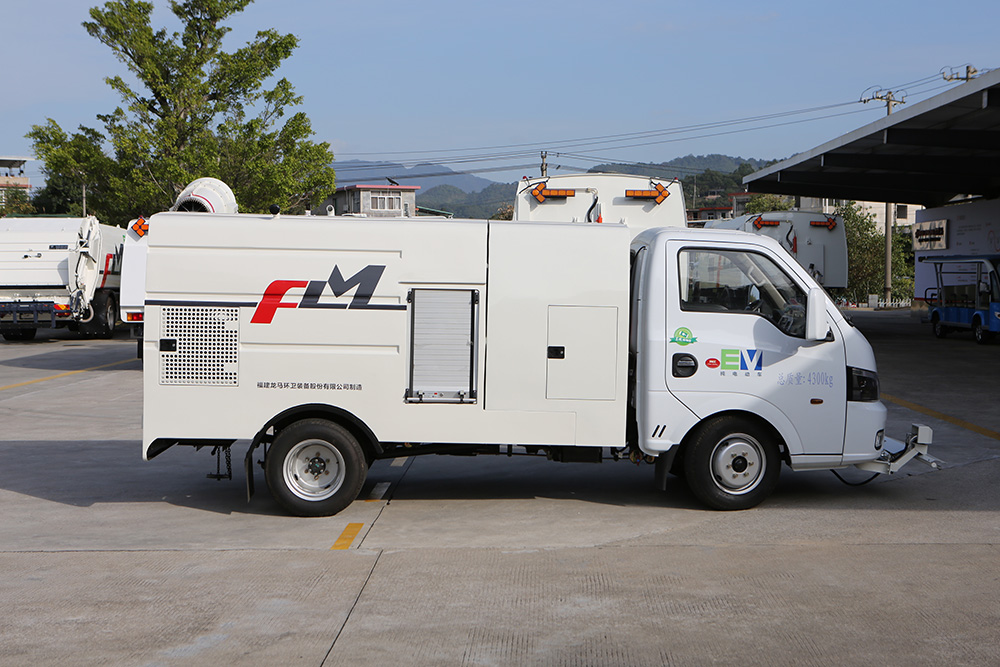

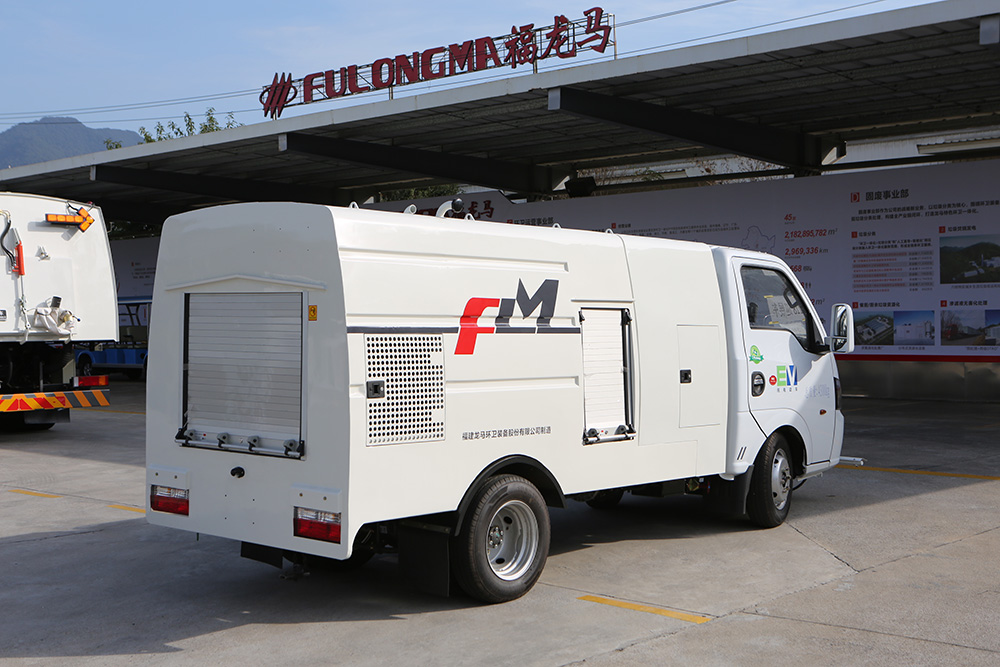

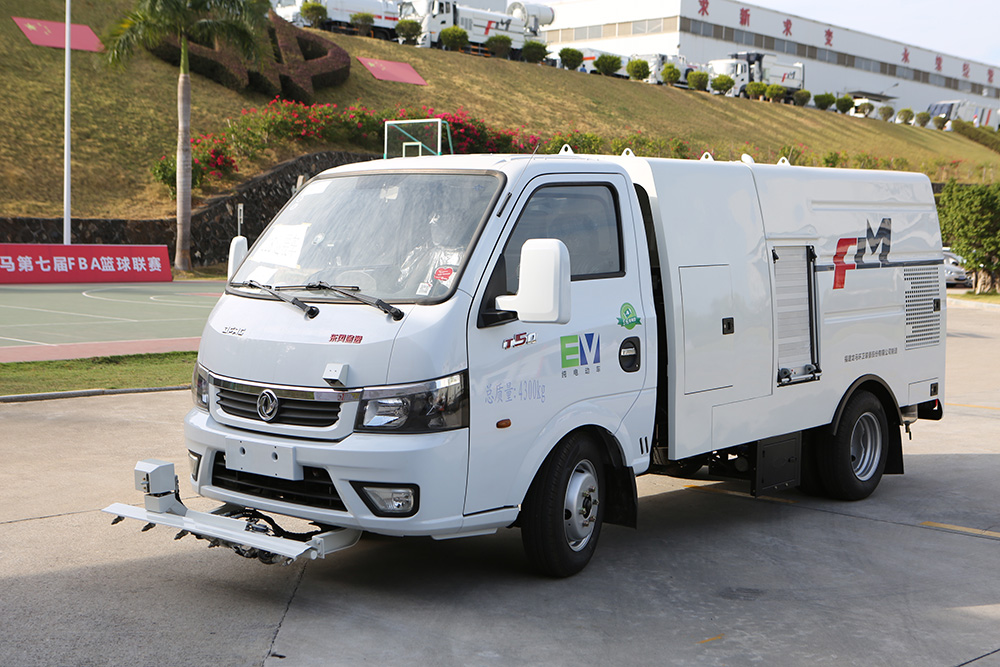

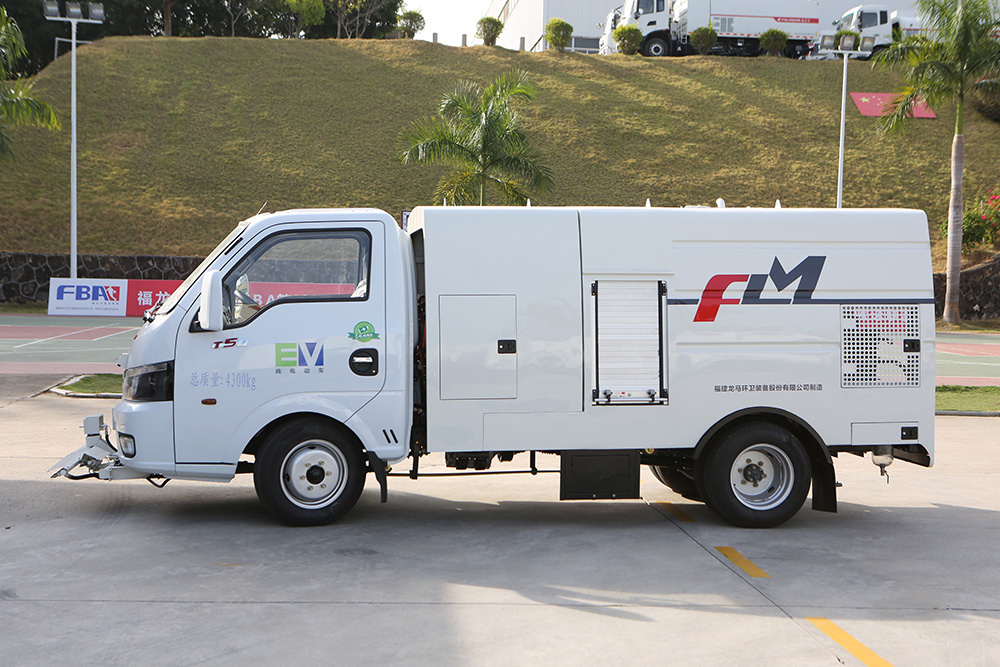

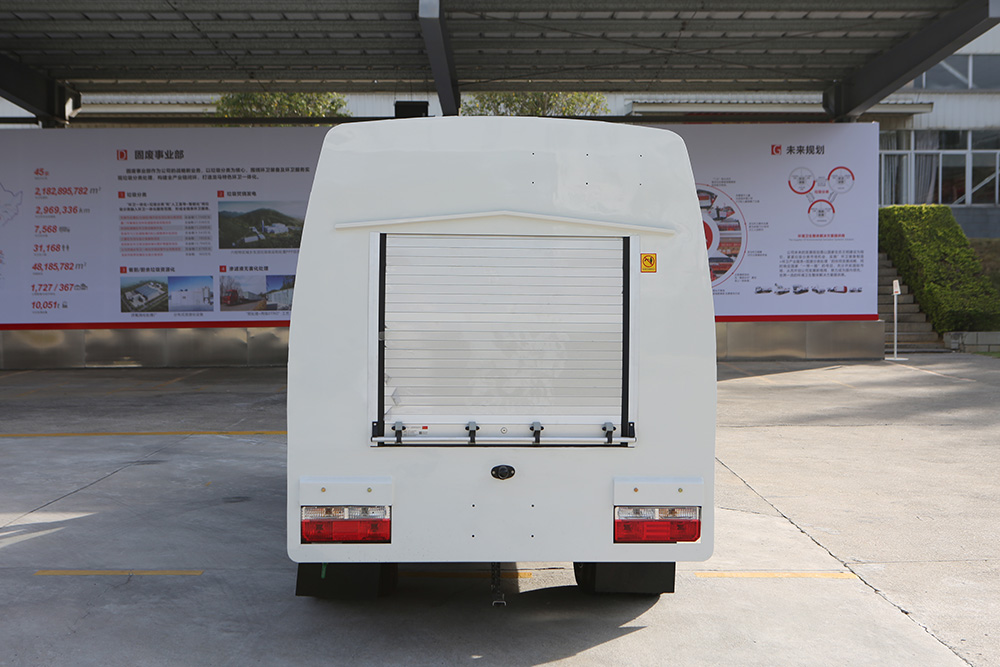

A new type of pure electric road maintenance vehicle developed by FULONGMA according to market demand, the vehicle can be used for daily cleaning and cleaning of urban sidewalks and non-motorized vehicle lanes, as well as fixed-point strong cleaning for stall-stained pavement, urban pavement psoriasis, and vehicle maintenance oil-stained sections It can also be used for chemical spraying and daily moisturizing maintenance of roadside green belts and gardens. It has the advantages of flexibility, comfortable operation, convenient maintenance, complete functions, safety, and reliability.
01. Function overview of the pure electric road maintenance vehicle
This product is composed of chassis, auxiliary engine, high-pressure water system, integral water tank, water spray frame, fixed-point cleaning device, and electrical system. The integrated water tank of the road maintenance vehicle is firm and reliable, and has a large capacity; the high-pressure water pipe adopts a reel device to automatically retract and release, which is convenient to operate; the high-pressure water system adopts an imported high-pressure water pump, which has high pressure and stable and reliable operation. The vehicle has a reasonable layout, high configuration, low noise, and low emission, and is favored by users.
02. The working principle of the pure electric road maintenance vehicle
1. Front point spray: Through the column-shaped single point cleaning, the large pieces of garbage in the road section in front of the vehicle are washed away.
2. Front corner spray: Use the left and right corner spray to clean the curbstone, guardrail base, and other working scenes.
3. Front spray frame: The road surface is cleaned through the linear high-pressure water curtain, and the vehicle operation is easy, and the advantages are more obvious on narrow roads.
4. Hand-push spray rack: In the area where the vehicle cannot reach, connect the hand-push spray rack to the water source of the box to clean the area.
5. Floor scrubber (optional): In the area where the vehicle cannot reach, the effect is obvious for the road cleaning with more dirt.
6. Hand-held spray gun: Use a high-pressure spray gun to clean road signs, billboards, etc.
03. Performance characteristics of the pure electric road maintenance vehicle
1. Adopt Dongfeng pure electric truck chassis, chassis cathode electrophoresis, optimized design and improvement, energy-saving, and environmental protection.
2. The box body is sealed reliably, which greatly reduces “running and dripping”.
3. The use of a 53-degree large-capacity, high-energy-density ternary lithium battery with excellent performance can fully meet the normal operation after one charge.
4. The width of the vehicle is less than 1.8m, the turning radius is small, and the maneuverability is flexible.
5. The protection level of all electrical components, including “big three electrics”, “small three electrics” and wiring harnesses, reaches IP67 and above to ensure the safety of the whole vehicle.
6. The chassis adopts a permanent magnet synchronous motor to electrically drive the rear axle, continuously variable speed, and has the function of braking energy feedback.
7. The whole vehicle is equipped with an intelligent monitoring fault diagnosis system, which uses the vehicle monitoring terminal to collect the vehicle operation data and upload it to the monitoring platform to facilitate the efficient operation of the vehicle and realize real-time monitoring and intelligent service of the vehicle operation status. View vehicle operating conditions in real-time.
8. High-pressure water circuit control system with technology, when the high-pressure water pump starts and the working mode is switched, the water circuit system can automatically unload, and the water tank is equipped with a low-water level sensing alarm system, which automatically alarms and stops when there is no water to prevent the water pump from running out of water. If it is damaged, a blowing joint is reserved, which can be connected to an external air source to drain the water in the water pipe, which can prevent the pipeline system from freezing and cracking at low temperatures.
