The FULONGMA sprinkler truck tank is made of a 4mm thick Q235 high-quality carbon steel plate. It is equipped with a well-known brand sprinkler pump, which can be self-priming and self-unloading. It is equipped with front flushing, back sprinkling, side sprinkling, advanced sprinklers, 360-degree rotating anti-aircraft spray guns, Power take-off, fire interface, strainer, and three-way ball valve. Sprinklers are mainly used for greening, road maintenance, spraying, dust suppression and dust removal, artillery spraying, farmland and forest irrigation, long-distance water delivery and emergency fire fighting, and other industrial and mining enterprises.

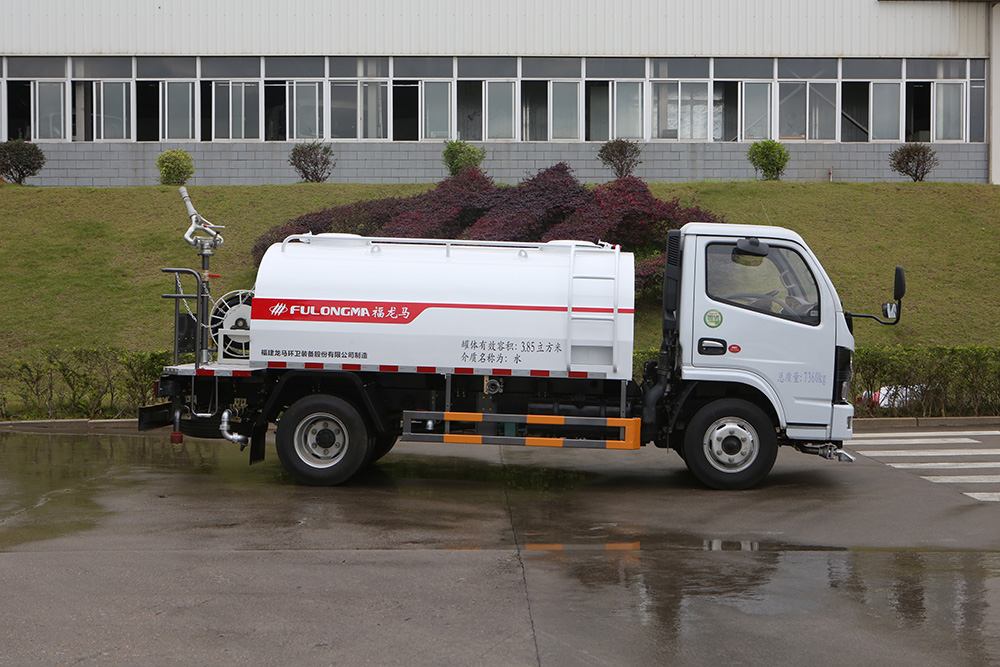

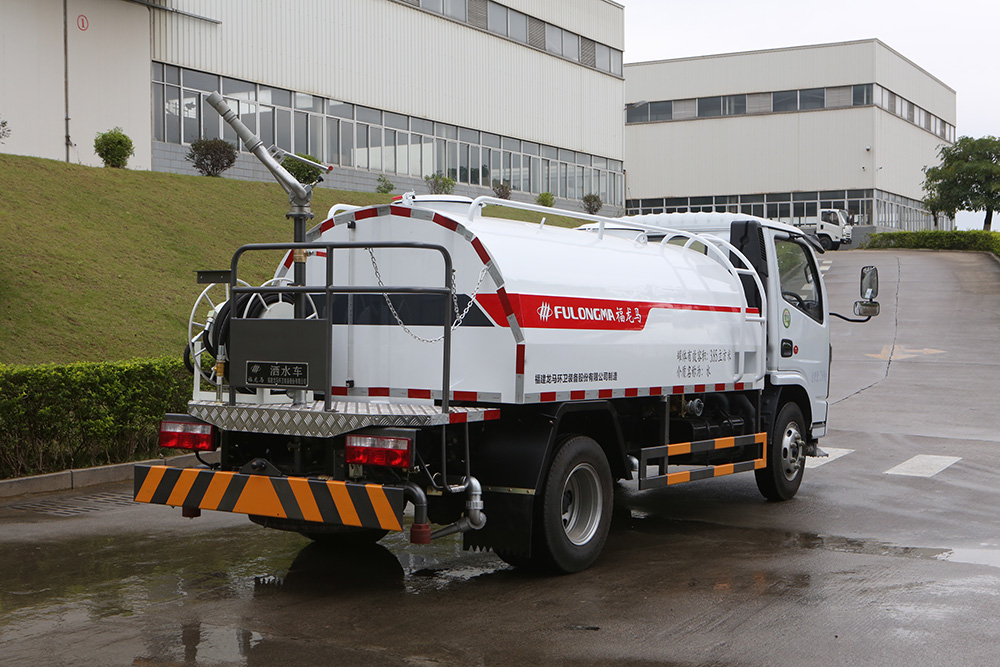

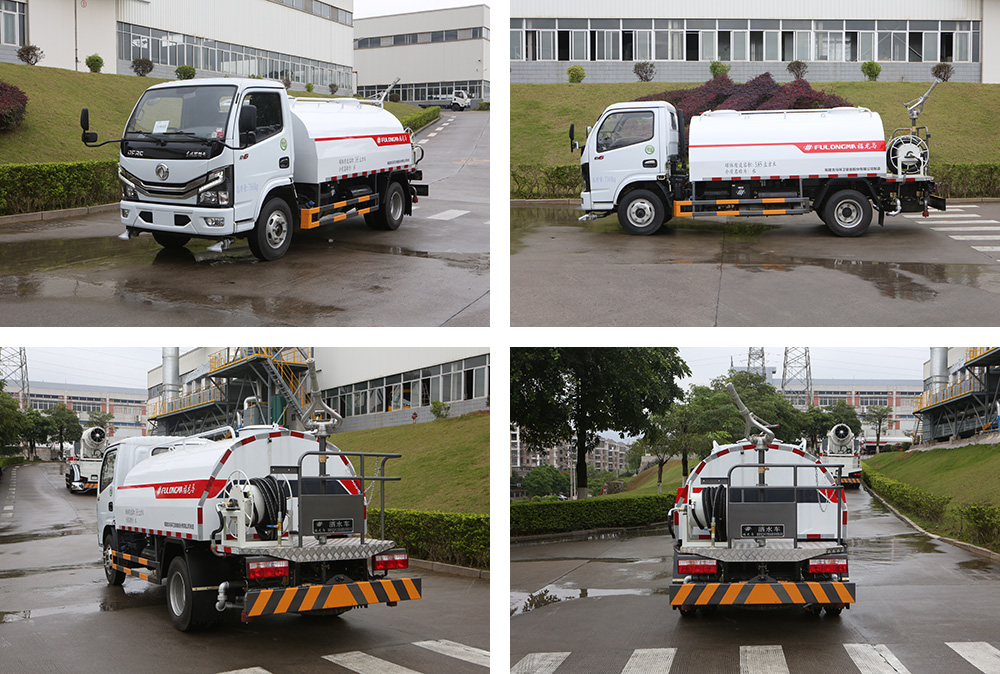

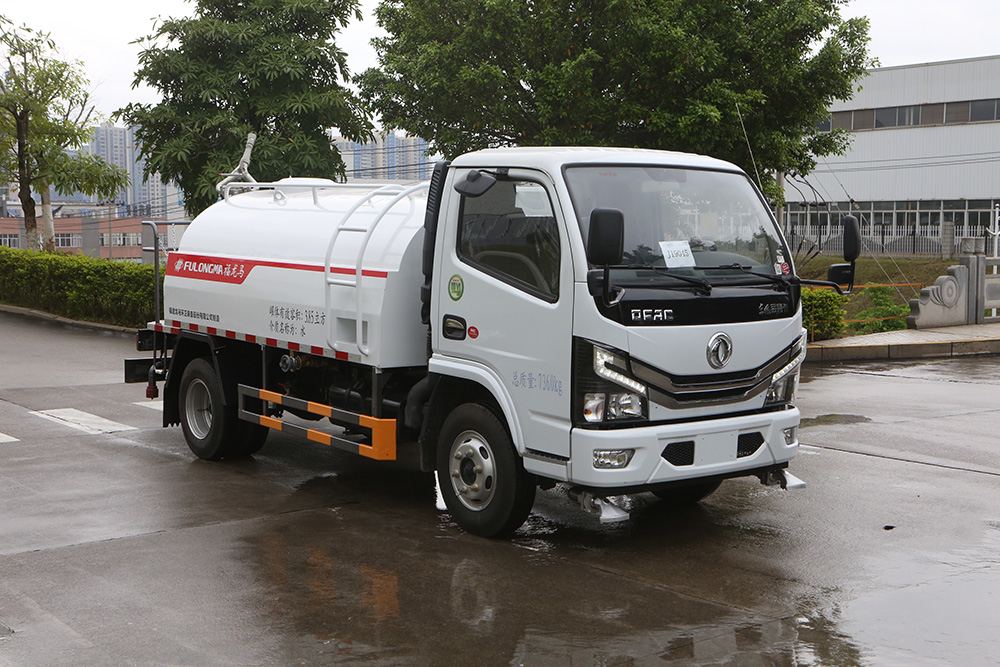

01. Detailed picture of sprinkler truck
02. Sprinkler truck chassis configuration

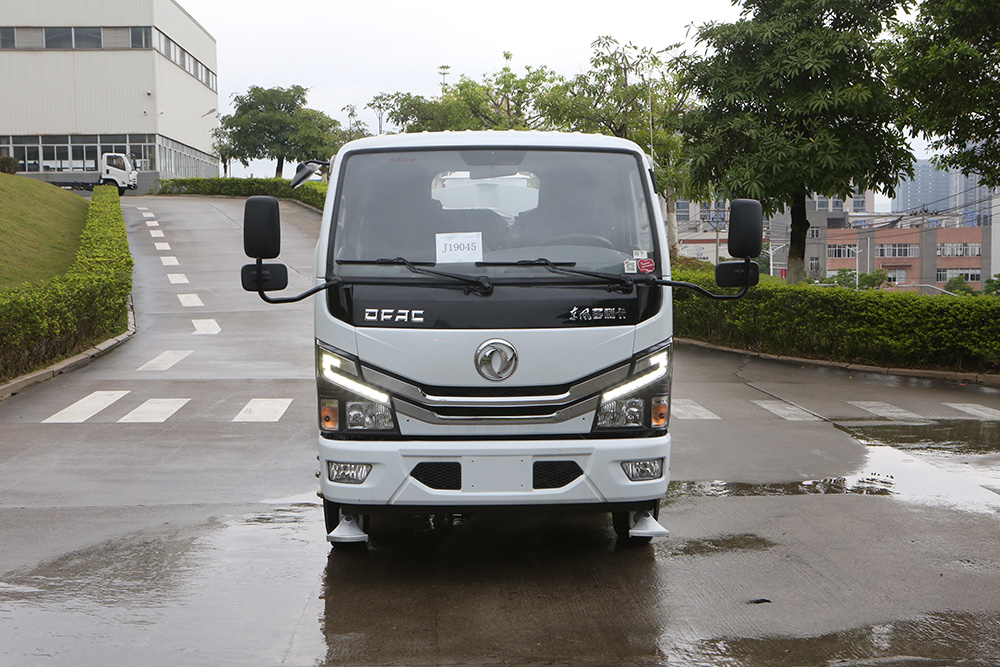

The sprinkler truck uses Dongfeng chassis, Chaochai CY4BK461 engine, WanLiYang 6-speed gearbox, wheelbase 3.8 m, 5.5 t rear axle, 245/70R19.5 tires, ABS, direction assist, clutch assist, air brake, front cab, Air conditioning, electric glass.
03. Standard configuration of sprinkler truck
1. The tank body is made of a 4mm thick Q235 high-quality carbon steel plate, which can be self-priming and self-unloading. The pump has a long service life, fast pumping speed, large flow, and high lift. The vertical suction head of the pump is greater than or equal to 7m, the time for the pump to fill a bucket of water is about 10 minutes, and a tank of water can be sprayed continuously for 2-3 hours.

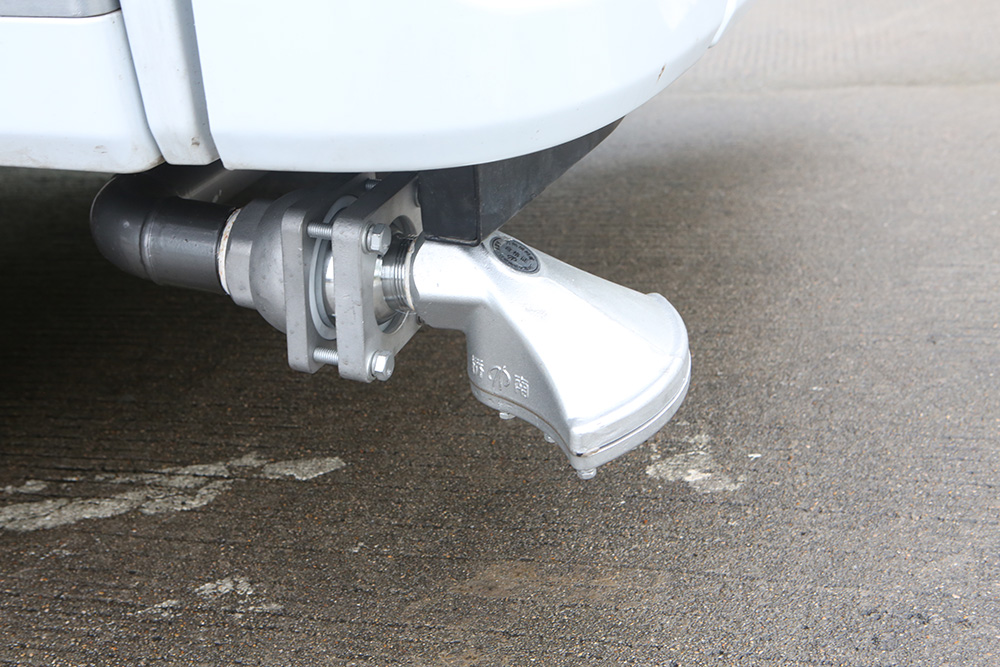

2. The sprinkler truck can be equipped with an Hangzhou Weilong pump, general duckbill nozzle, cockpit pneumatic control valve, tank tail LED arrow indicator, sprayer (for spraying pesticide), anti-corrosion and rust prevention in the tank, intelligent automatic control anti-aircraft gun, and so on.

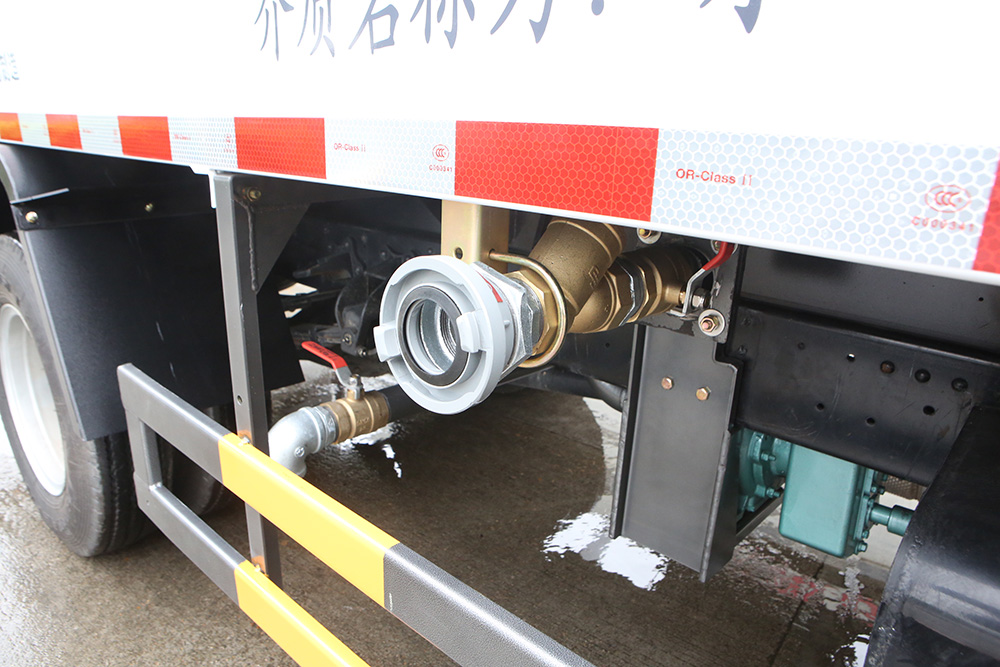

3. The sprinkler truck is equipped with front flushing, rear spraying, side spraying, high-level sprinkler truck, a rear working platform with 360-degree adjustable green water monitor, artesian valve, filter, and fire interface (can be used for water intake Fire hydrant, which can be used for emergency fire fighting).
4. The measuring pipe in front of the sprinkler truck tank (observe the water level in the tank), the ladder behind the tank, the simple tank port on the tank, simple guardrail, double barrels on the side of the tank, two 3M long The steel wire barrel is equipped with a plastic suction tube, and the surface of the fuel tank is coated with double layer technology to prevent rust and corrosion.
04. The advantages of the sprinkler truck function
1. The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low.
2. Operation functions such as left and right side flushing, front and rear spraying can be operated in the cab.
3. Equipped with the front left and right sprinklers and rear left and right cylindrical side flush, with adjustable nozzles.

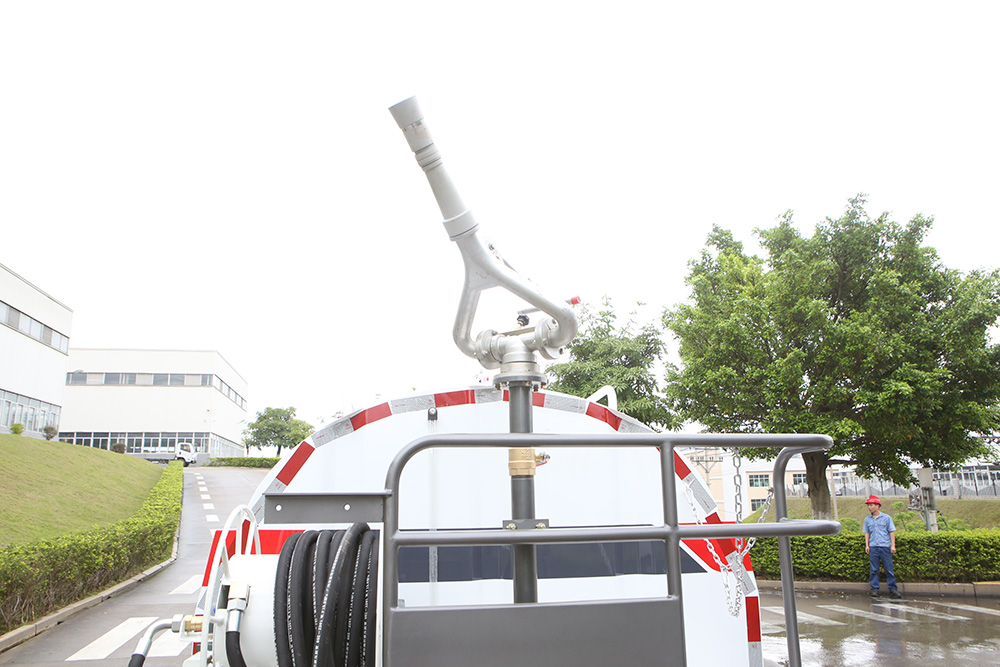

4. The high spray gun located at the rear of the vehicle body is flexible to operate and has a large working angle range, which can be used for watering trees at various heights and positions along the road.
5. A 20-meter low-pressure hose winch is installed on the left side of the rear platform, which is convenient for operators to sprinkle and irrigate the green belts or flower gardens on both sides of the road.
6. There are two nozzles on the rear bumper, which are used for daily sprinkling to increase humidity and reduce dust.
05. Video of sprinkler truck work
