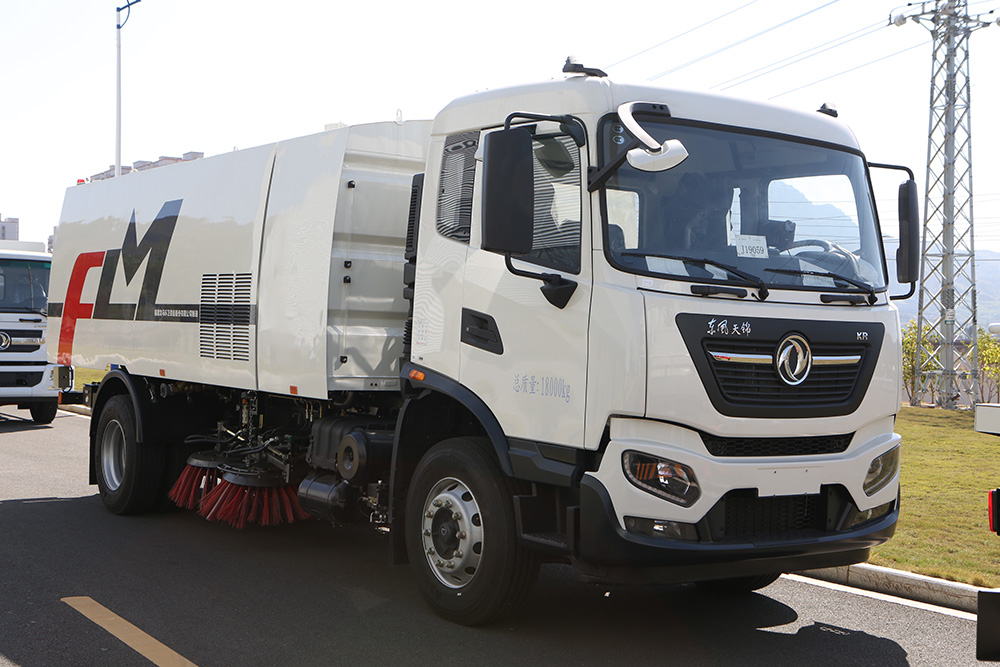

FULONGMA’s latest 18-ton washing and sweeping truck is retrofitted with the second-class chassis of China VI Dongfeng, and is equipped with an auxiliary engine, fan, clean water tank, left and right vertical sweeping, sweeping dust suppression system, left and right high-pressure side spray height, suction cup built-in high-pressure main spray rod, Pneumatic system, hydraulic system, electronic control system of special device and subframe are modified.

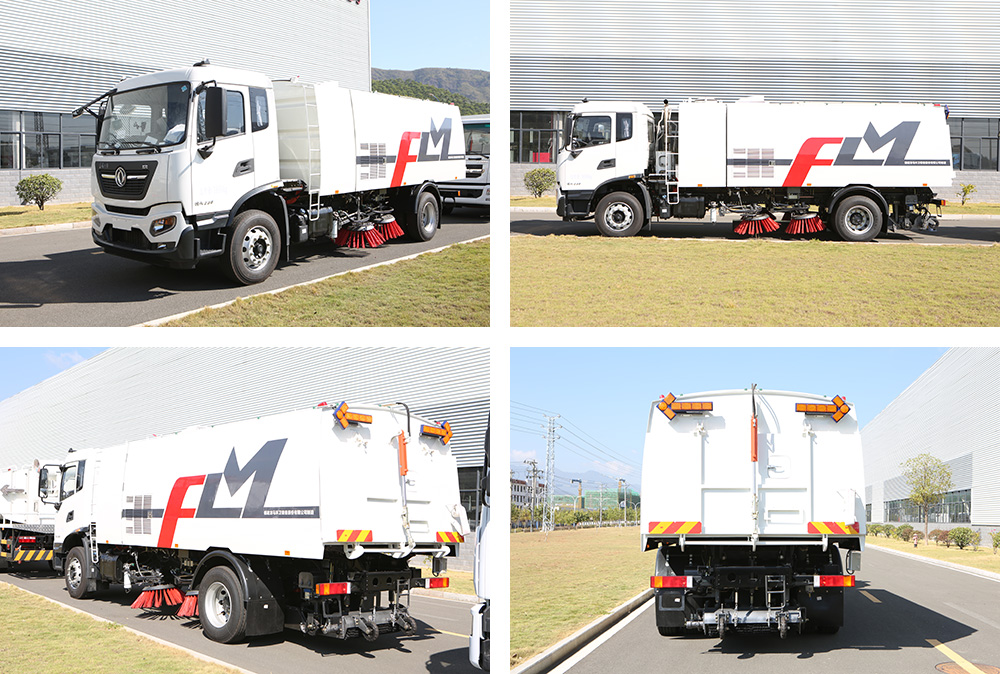

01. The latest 18-ton washing and sweeping truck real pictures
02. Description of the latest 18-ton washing and sweeping truck components
1. The chassis adopts Dongfeng Duolika / Furika series of national six and two types of chassis.
2. The maintenance-free automatic clutch reduces the impact on the engine when the fan starts and stops. The clutch has the advantages of high wear resistance, long service life, low noise, low fuel consumption, and cost-saving during use.

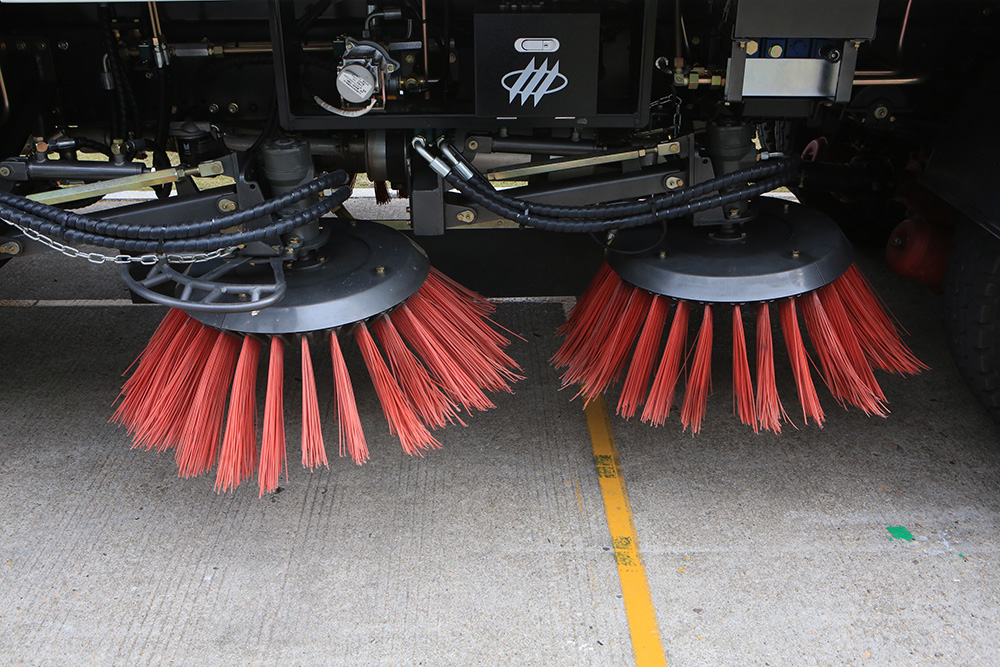

3. The sweeping cycloid motor adopts Sanyo motor, which has a long service life, is stable and reliable, and low failure rate.
4. The hydraulic pipeline adopts the German standard technical sealing structure, which has good anti-vibration performance and high sealing reliability and can achieve a leak-free sealing effect.
5. Jiangling 87 horsepower with a turbo charged auxiliary engine.
6. Sono Tiangong, Okada Seiko, pneumatic valve, pneumatic valve.
7. The auxiliary engine is equipped with an air filter element, which can effectively prevent the auxiliary engine from entering dust and causing the cylinder to be pulled.
8. Reversing image at the rear of the vehicle, manual operation box at the rear, and rear spray at the rear.
9. The rear adopts an LED arrow light warning light to ensure the safety of the driving operation.

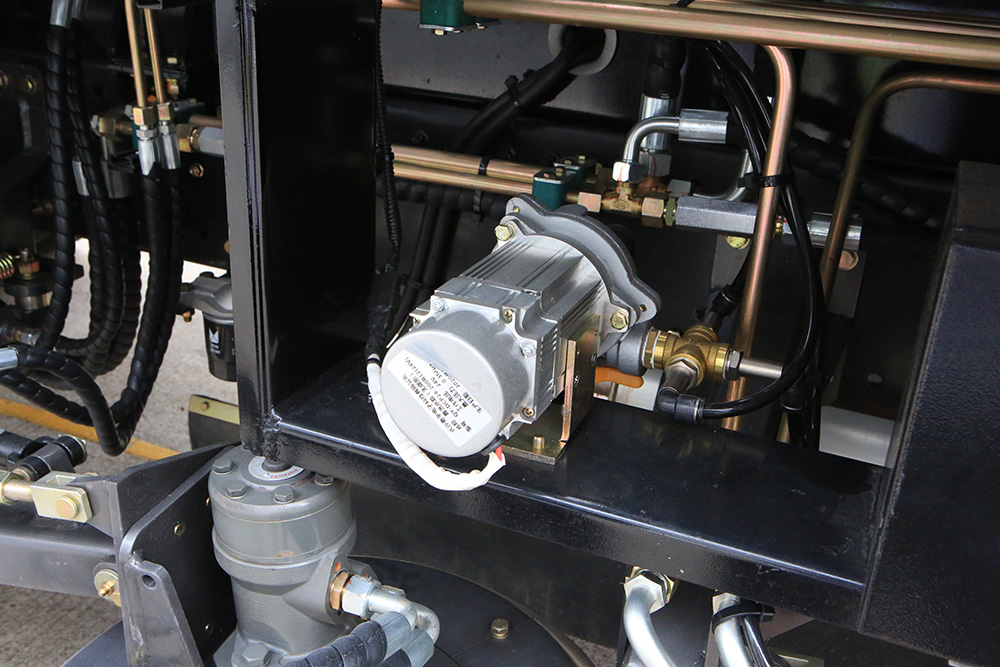

10. Hydraulic solenoid valves of well-known brands such as Hybris/Wessenbole are used, and Schneider electric switches are used for key electronic control components, which have high reliability and long service life.

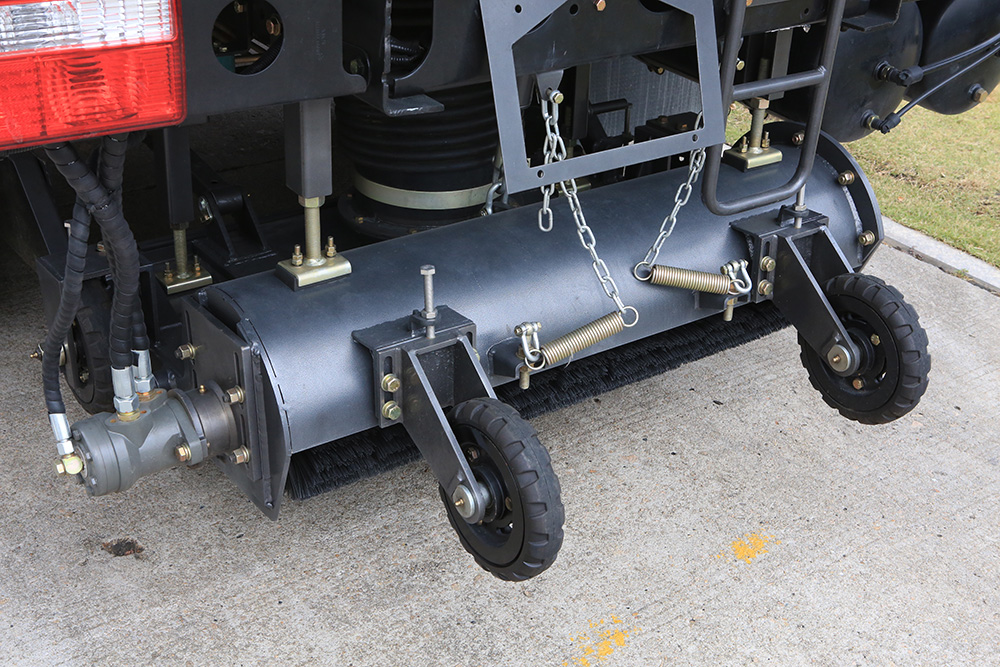

11. The suction mouth width of the suction cup reaches 1400mm, which ensures that the total working width is greater than 3m. The 4 height-adjustable suction nozzle wheels can be easily adjusted and ensure a reasonable gap between the suction nozzle and the road surface, so as to achieve a better suction effect. higher efficiency.
12. There is a high-pressure water spray device in the suction cup, and the nozzle is arranged inside the suction cup, which can wash the road to the maximum extent. The left and right high-pressure water spray brackets are installed on the suction cups and move up and down with the suction cups.
13. Equipped with a manual pump emergency system, the garbage can be lifted even when the auxiliary engine is stopped, which is convenient for maintenance.
03. Product details of the latest 18-ton washing and sweeping truck
1. Adopt brand high-power wear-resistant and maintenance-free centrifugal fan, with strong suction, low noise, high power, anti-vibration, and long service life.
2. Adopt Pinfu high-pressure pump, PT40, with high pressure, large flow, high suction lift, and low noise, which fully matches the use of various high-pressure washing functions of the sweeper.

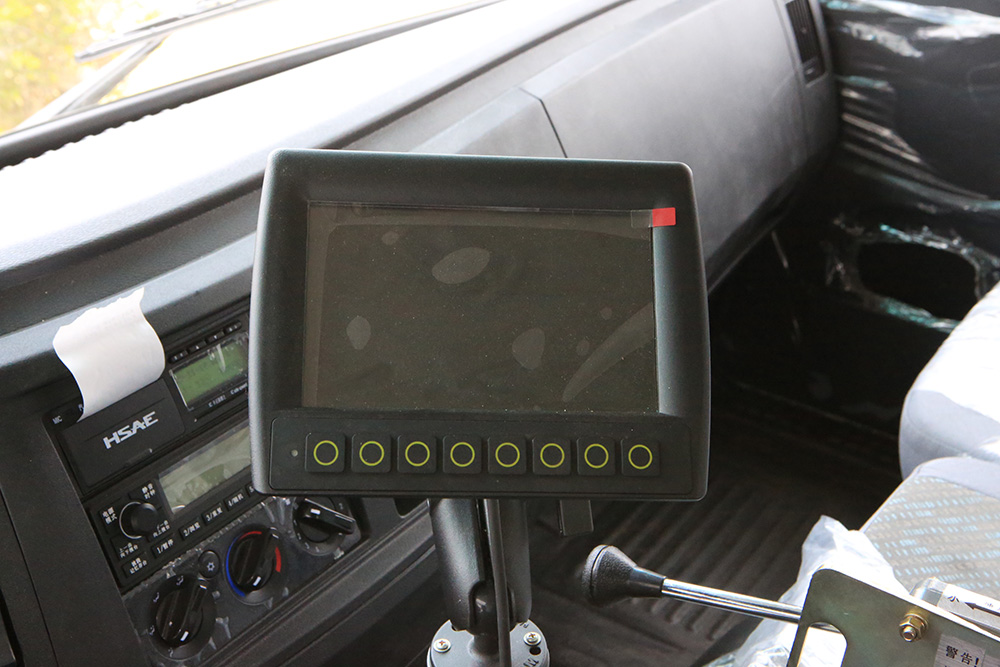

3. PLC cab operation, one-key operating system, easy to operate, safe, and reliable.
4. Equipped with a 20-meter automatic return reel, which can clean small advertisements on the wall, stubborn mud stains on the ground, and can also clean the body and other equipment and facilities.
5. With strong pressure and large flow, it can clean road markings and curbs, which is efficient and convenient.
6. The road surface can be sprayed to effectively cover dust and reduce dust.
7. The suction cup can suck away the rubbish, sewage, unswept stones, and other rubbish cleaned by the brush, super-gather dust, and improve the overall cleaning rate.

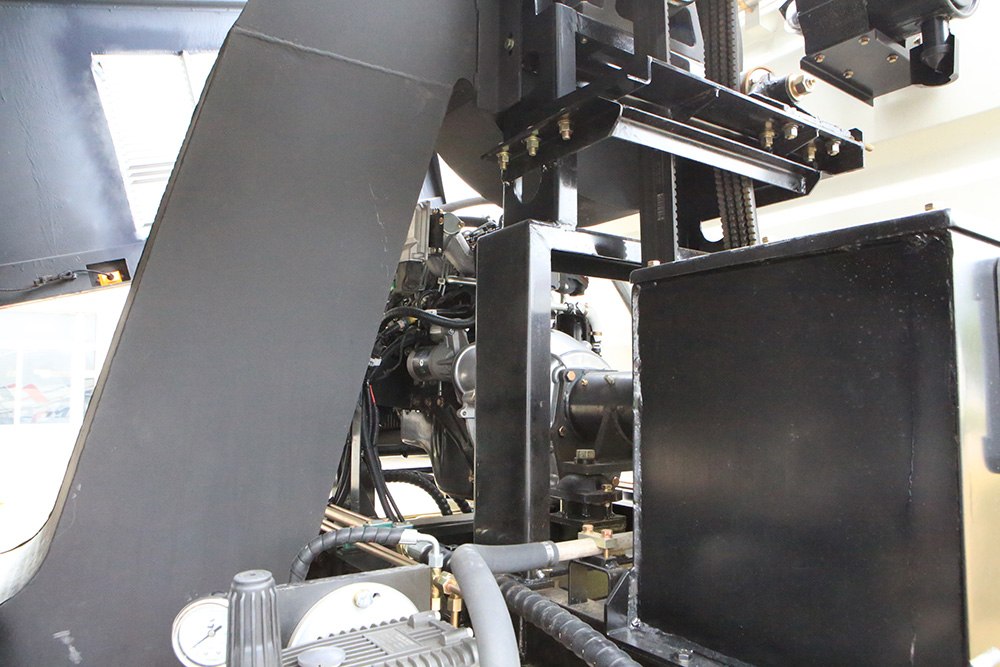

8. The auxiliary engine provides power for the fan and high-pressure water pump, and an air filter element and an oil filter element are installed to effectively prevent the auxiliary engine from entering dust and causing the cylinder to be pulled.
