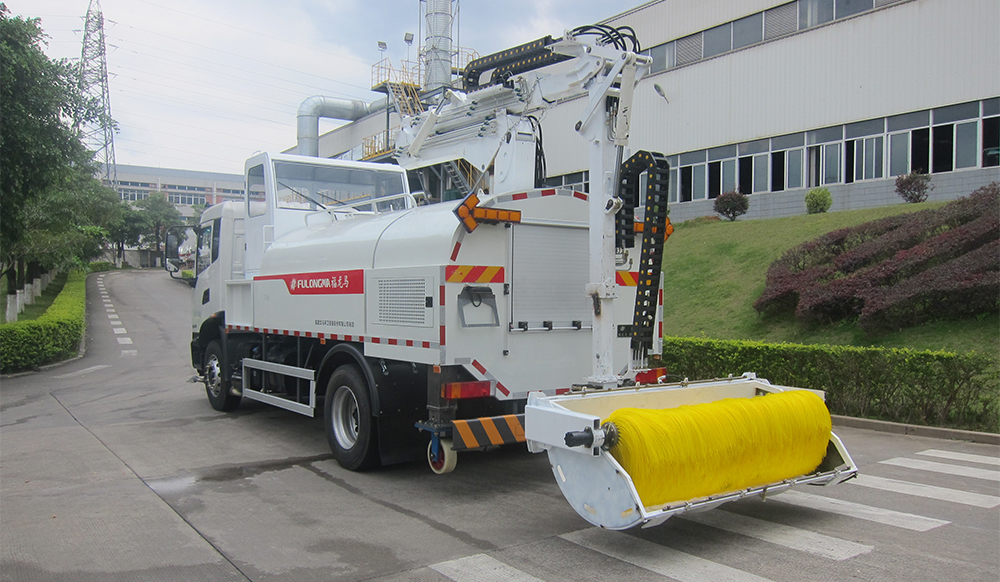

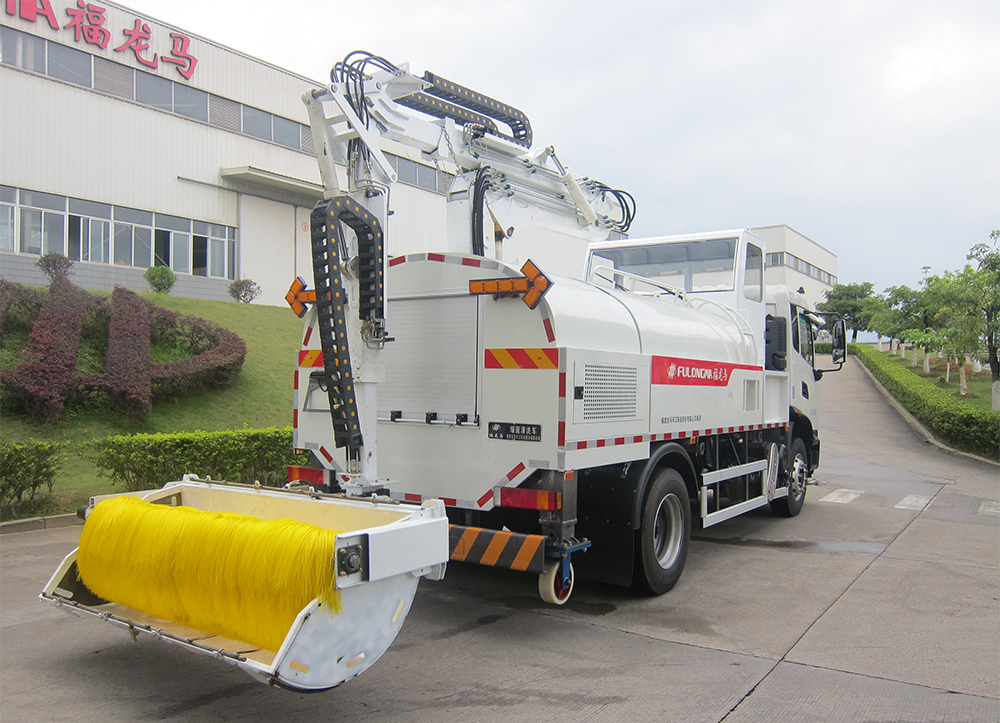

The wall cleaning truck is suitable for most sound insulation screens, wall and tunnel cleaning, urban road cleaning, etc., and can clean the inside and outside of the sound insulation screen. The whole machine is fully hydraulically driven, and the bionic design working arm drives the large-diameter cleaning brush to quickly reach each cleaning position to realize the cleaning operation. The whole machine is easy and flexible to operate, safe, and comfortable.
1. Product features
The vehicle power system outputs power through the power take-off on the side of the chassis gearbox to drive the low-pressure water pump and gear pump, and the vehicle emission reaches the national VI emission standard.
It has independent three sets of the water system of rolling water spray, low-pressure water spray, and high-pressure car washing gun. The hydraulic motor drives the high-pressure water pump and the diaphragm pump, and the chassis engine drives the low-pressure water pump.
It has the functions of wall tunnel cleaning and road sprinkling and washing. The two functions can be used alone or in combination at the same time. One vehicle has multiple uses.
The working arm is designed with a five-section arm structure and adopts the principle of bionics so that the working device can quickly clean the inside and outside of the sound insulation screen.
2. Diverse functions
Equipped with a pneumatic clean pipe antifreeze device to prevent damage to the water spray system components due to the residual water and freezing in the water pipeline in winter.
Equipped with a hand-held high-pressure water gun, which can wash vehicles, roads, and walls.
A laser positioning system is installed in the cab, which is convenient for the driver to drive the vehicle and ensure the operation effect and driving safety.
