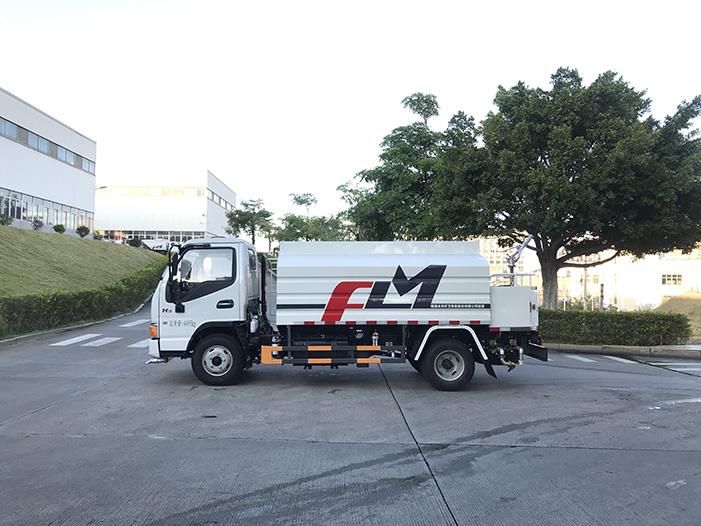

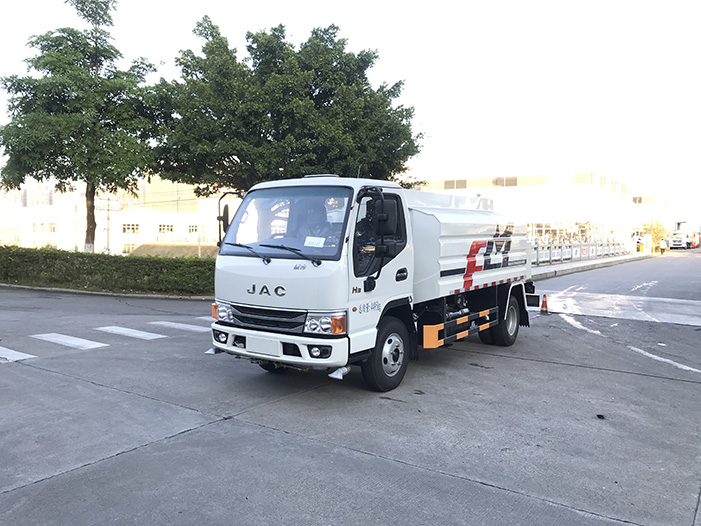

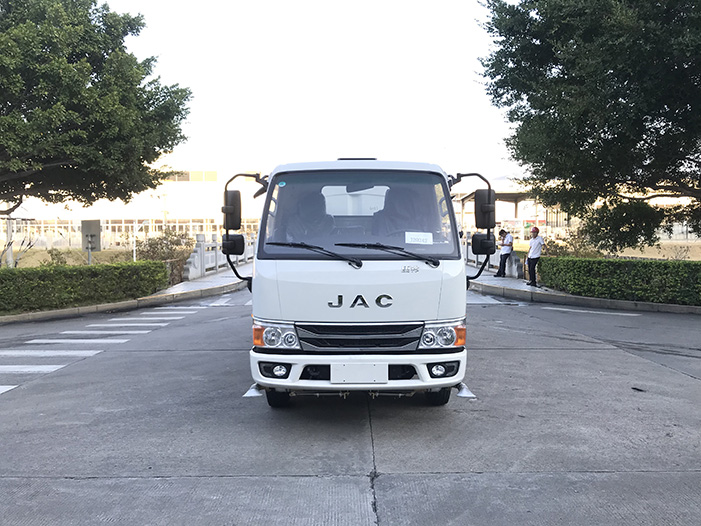

The car mainly uses low-level water to wash the dust on the road and make it flow into the sewer, to achieve the effect of cleaning and cooling. The vehicle has a multi-functional operation mode and can be used in sanitation, municipal, and landscaping operations.
|
Parameters |
FLM5040TYHJQ6 |
|
Chassis Model |
HFC1041P23K1C7ZS |
|
Emission Standard |
China VI |
|
Chassis Engine Model / Power(kW) |
Q23-115E60/85 |
|
Top Speed (km/h) |
100 |
|
Gross Vehicle Weight (kg) |
4495 |
|
Water Tank Volume (m3) |
4.2 |
|
Washing Width (m) |
≥12 |
|
Rear Water Gun Range(m) |
≥30 |
|
Dimension (LxWxH) (mm) |
5905x1925x2240 |
It adopts a self-priming centrifugal pump of a well-known brand, and the water pump is driven by the chassis engine. It adopts the domestically pioneered low-level flushing work mode.

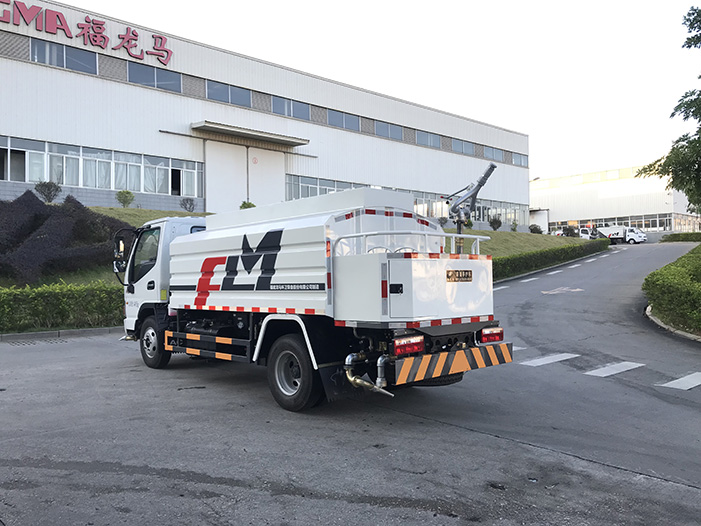

The water gun located at the right-rear part of the car is flexible to operate and has a large working angle range, which can be used for watering trees at various heights and positions along the road. At the same time, during the operation, the operator can communicate with the driver in language or gesture to improve the safety of the operation. In addition, the water gun also has an auxiliary fire-fighting function, and the high spray gun can be adjusted into a column or mist.
Equipped with front, left and right sprinklers and rear left and right flushing devices, the nozzles can be adjusted universally.

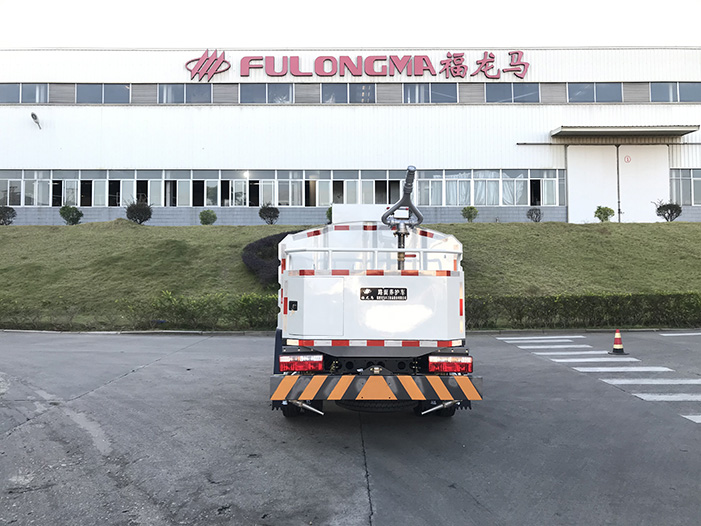

There are two nozzles on the rear bumper, which are used for daily sprinkling to increase humidity and reduce dust.
A 20-meter low-pressure hose winch is installed on the left side of the rear platform to facilitate the operators to sprinkle and irrigate the green belts or flower gardens at a long distance on both sides of the road.
The sprinkler function can be operated in the cab.
The switch control valves and sprinkler system pipes are made of corrosion-resistant materials. The water storage tank is made of Q235B material, and the interior is treated with a special process to prevent corrosion.
The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low.
