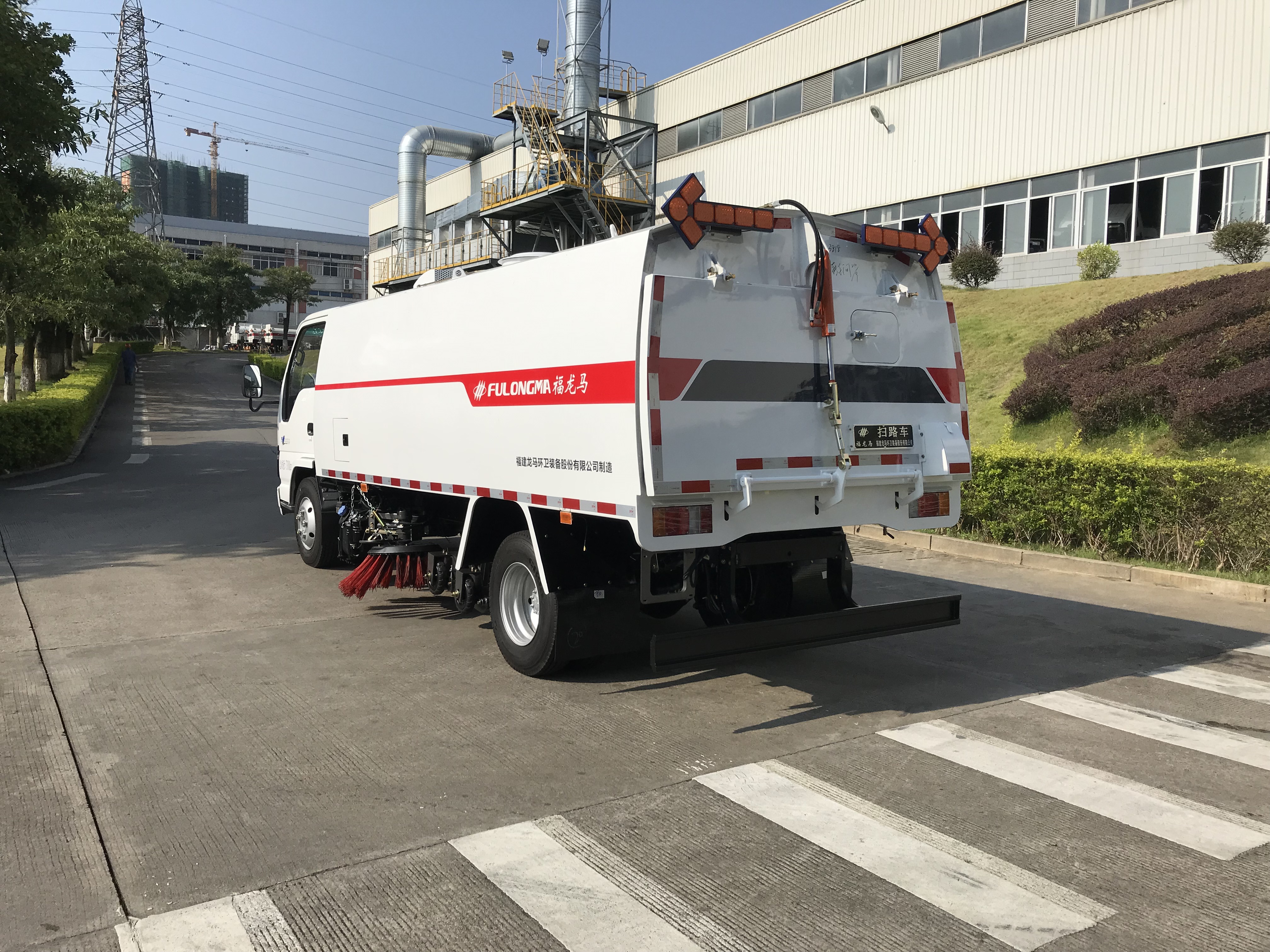

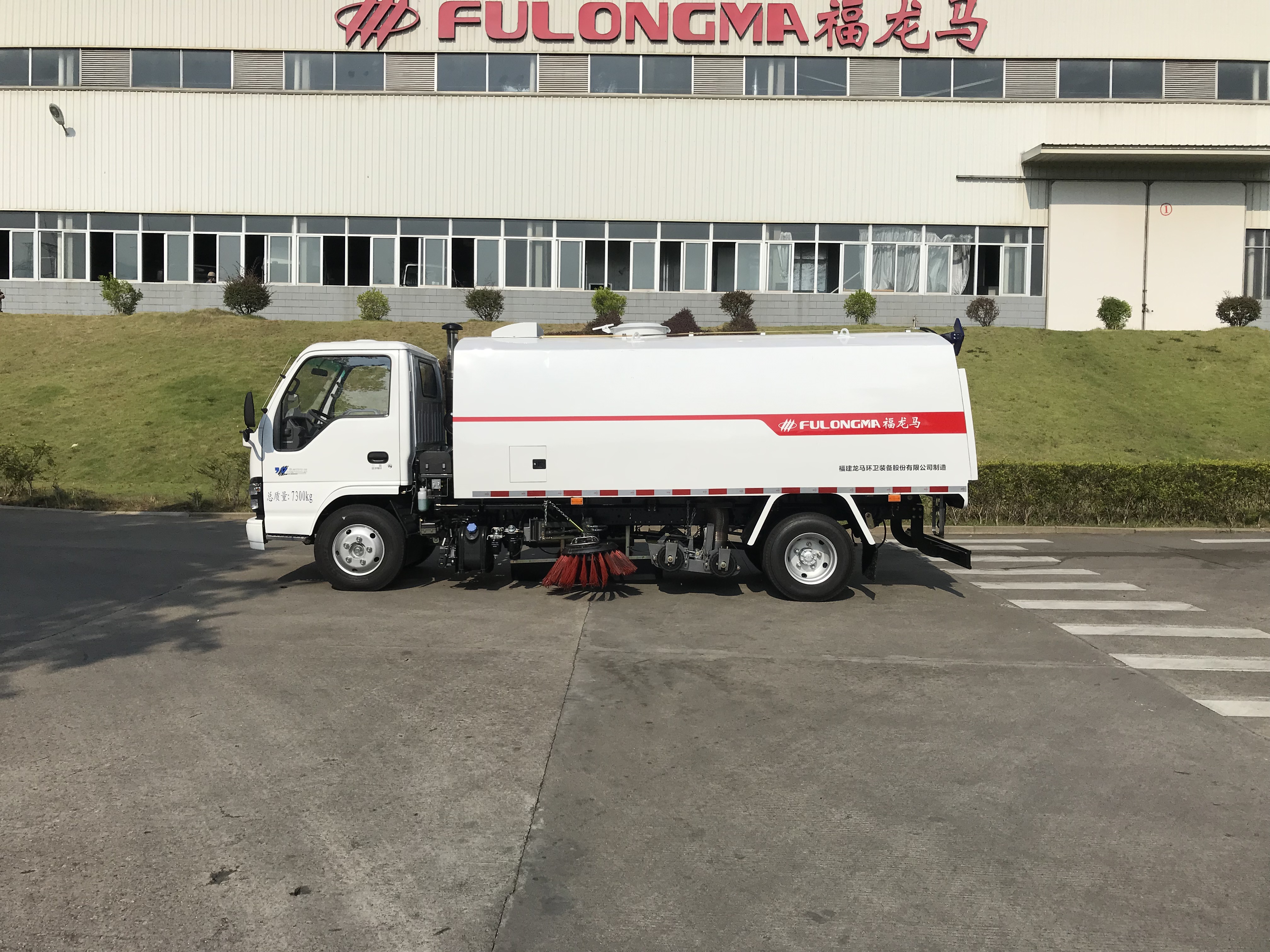

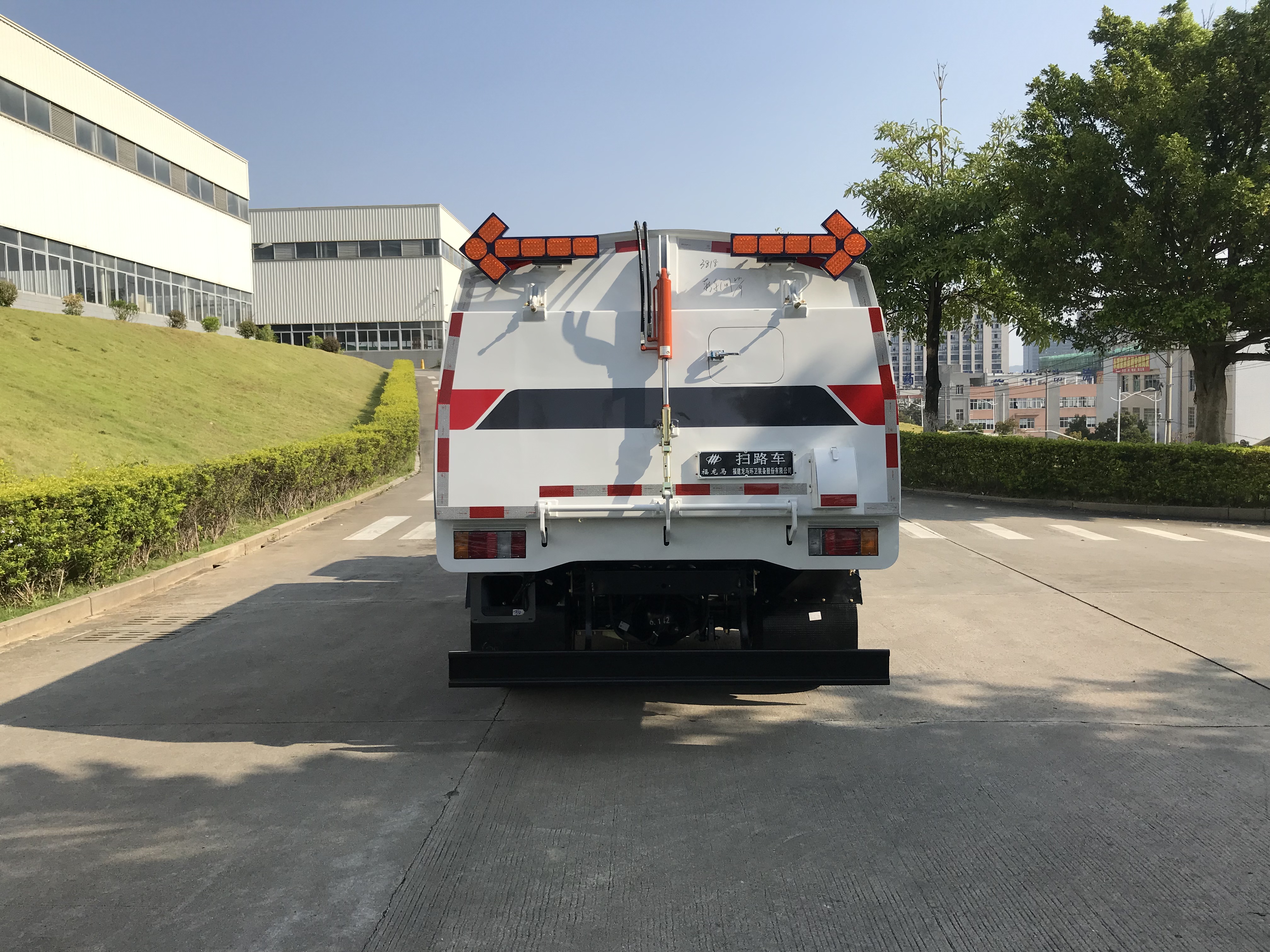

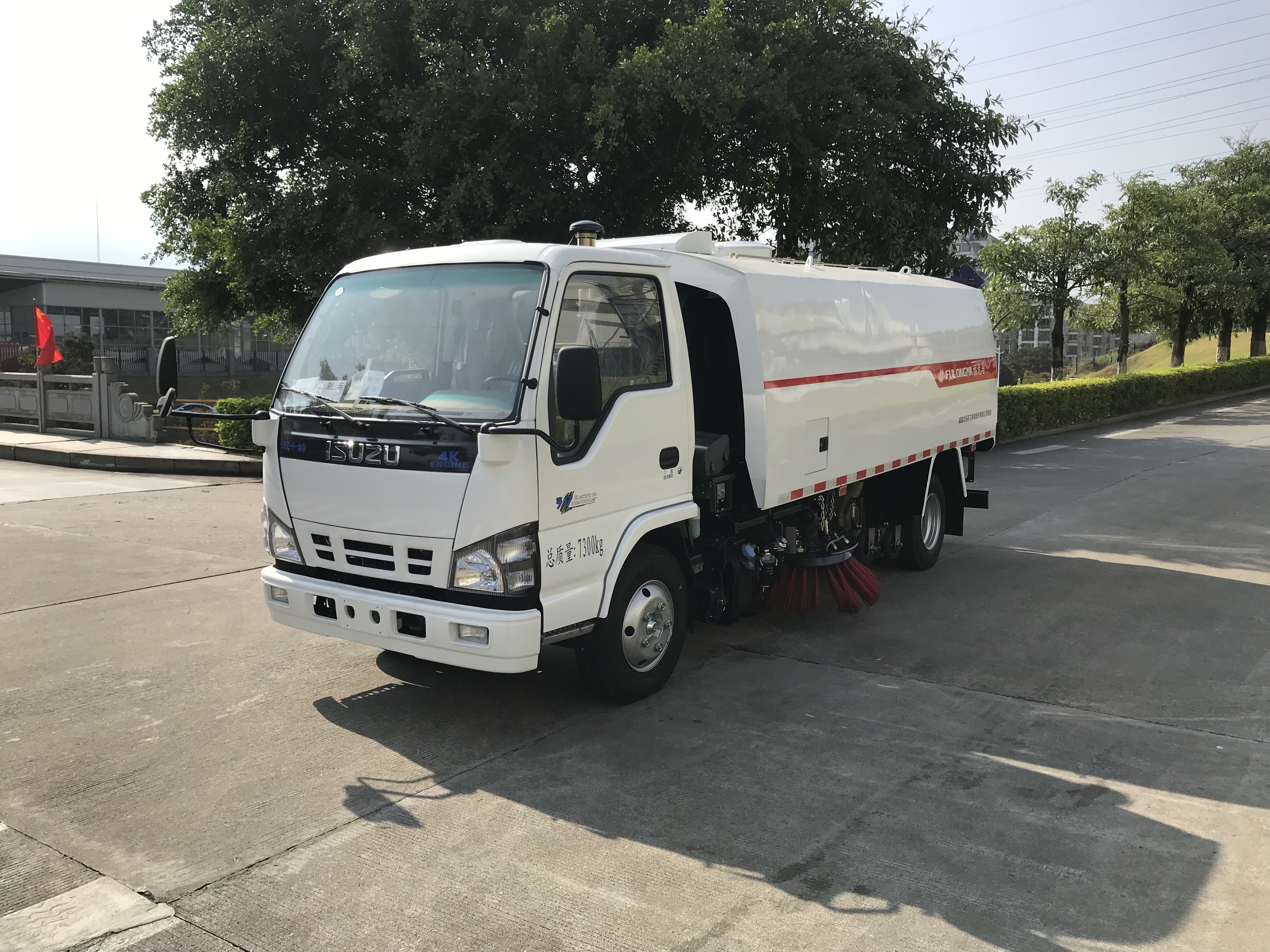

It is the latest innovative and advanced road cleaning vehicles with the function of sweeping and suction. It is mainly suitable for the mechanization cleaning operations in urban road, highway, airport. The truck has the advantages of high working efficiency, advanced and reliable technology, well designed appearance, applied multiple patents and the technology is in the domestic leading position.
|
Auxiliary Engine Model |
ISUZU 4JB1-TCH |
|
Sweeping Width (m) approx. |
3 |
|
Dustbin Volume (m³) |
4.75 |
|
Water Box Volume(m³) |
2.2 |
Sweeping device type: centrally set two-plate sweep + wide suction nozzle, the sweep plate can automatically avoid obstacles.
Suction nozzle: equipped with a crushing device on both sides, which can crush dead leaves and so on after absorption.
It has a pneumatic net antifreeze device, which can effectively ensure that the water spray parts are not structurally damaged due to icing.
With drainage and leakage prevention device, it can effectively prevent the accumulation of dirt, prevent secondary pollution caused by dirt falling back to the ground and clogging the garbage suction pipe.
All fasteners are galvanized, and structural parts such as sweeping discs and suction nozzles are electrostatically sprayed after pickling and phosphating, which has strong adhesion, corrosion resistance and weather resistance.
The dustbin box is made of SUS304 single layer whole stainless steel material, with high structural strength and no rust.
In an emergency state, the manual pump can be used to control the movement of the dustbin, suction nozzle and sweeping plate. In special cases, it can directly enter the auxiliary engine working cabin for detection and maintenance.
The shape of the box adopts the shape of a large curved surface on the side, with sharp corners, sharp edges and corners, and a high-end atmosphere.
It has various safety alarm devices: low water level of clear water tank, operation prompt, auxiliary engine water temperature, oil pressure, reversing prompt, hydraulic oil leakage alarm, dumping tank dumping, resetting and rear door opening and closing safety alarm and other devices.
The auxiliary engine and fan are connected by a centrifugal clutch, which can ensure that the auxiliary engine is automatically disconnected from the fan when the auxiliary engine starts without load and when the auxiliary engine is stopped.
Adopt intelligent control system, equipped with 7-inch LCD screen in the cab, real-time display of multiple operating parameters, intelligent centralized control of electric, hydraulic and pneumatic, the driver can complete various operations in the cab, easy to operate.
Equipped with the lifting and lowering device of the grounding roller of the sanitation vehicle, the position of the roller can be adjusted quickly and conveniently.
