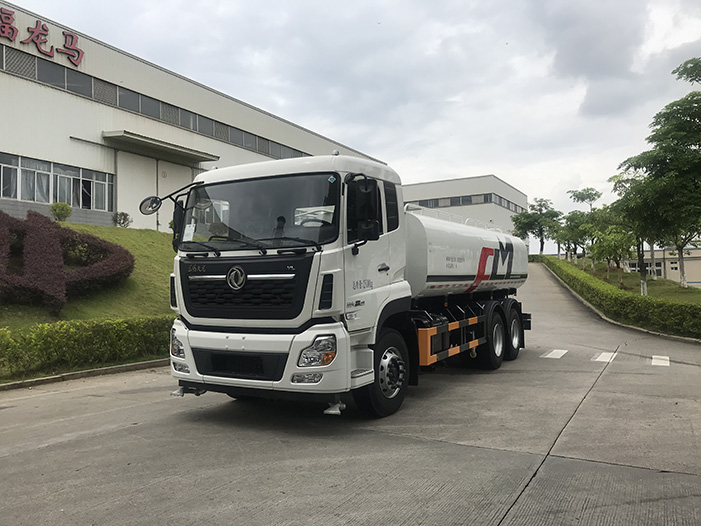

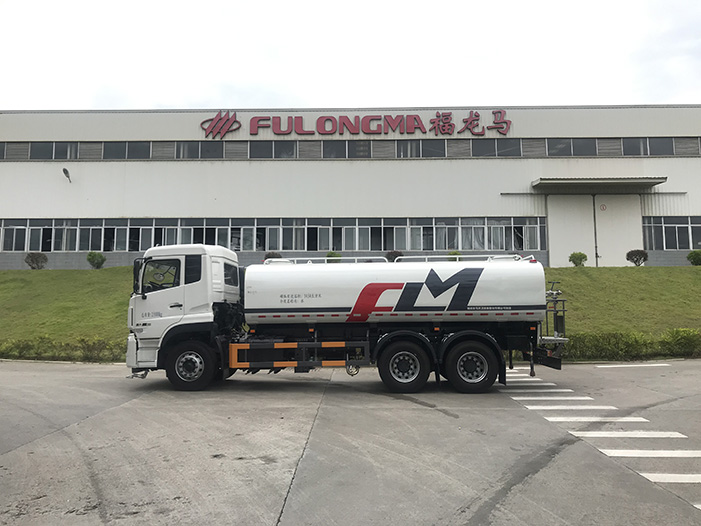

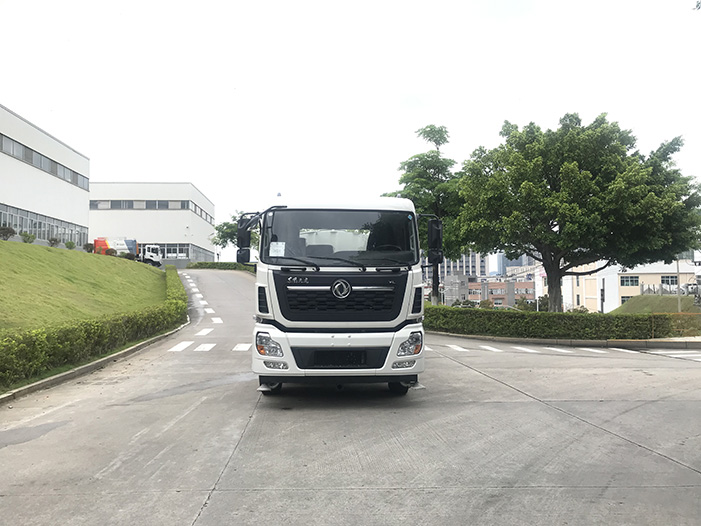

This truck is a special vehicle for efficient washing operations developed by FULONGMA. It mainly uses low-level water flow to flush road dust, achieving the effect of cleaning and cooling. The truck has a multi-functional operation mode and can be widely used in sanitation, municipal, and landscaping maintenance.
|
Parameters |
FLM5250GSSDF6 |
|
Chassis Model |
DFH1250D4 |
|
Emission Standard |
China VI |
|
Chassis Engine Model / Power (kW) |
DDI75E300-60/215 |
|
Payload (kg) |
13855 |
|
Top Speed (km/h) |
89 |
|
Tank Volume (m3) |
14.54 |
|
Washing Width (m) |
≥24 |
|
Sprinkling Width (m) |
≥16 |
|
Rear Water Gun Range (m) |
≥50 |
|
Dimension (Lx Wx H) (mm) |
9350x2530x3055 |
The self-priming two-stage centrifugal pump is adopted, and the water pump is driven by the power of the chassis engine; adopts the domestic first low-level flushing mode.

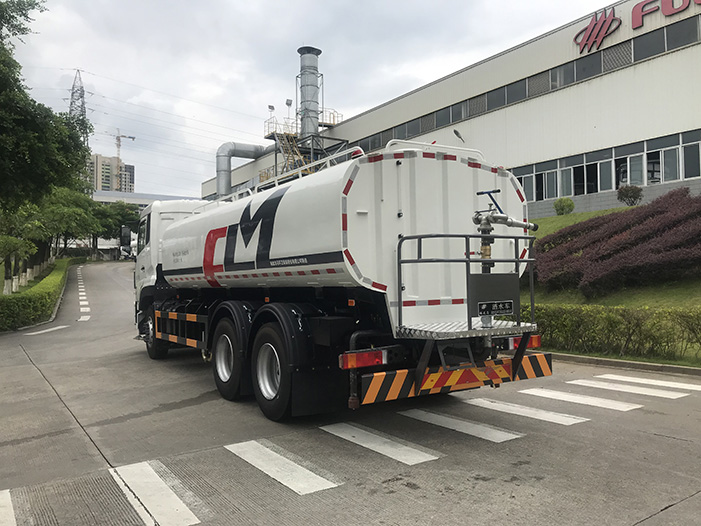

The water gun located at the rear of the car body is flexible to operate and has a wide range of working angles. It can be used to spray objects of various heights and can remove some sanitation dead spots that are not easy to clean. It also has an auxiliary firefighting function, and the water gun can be adjusted into a column or mist.
Equipped with left-side punching device and right-side punching device, the nozzle can be adjusted 360° left and right and 360° up and down.

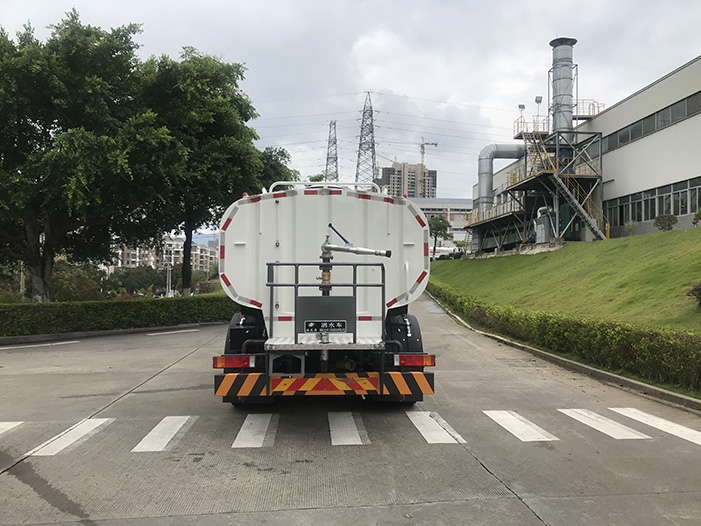

There are two nozzles on the rear bumper, which are used for daily sprinkling to increase humidity and reduce dust.
The switch control valves and sprinkler system pipelines are made of corrosion-resistant materials, and the tank body is made of Q235B steel plate, and the interior is treated with a special process to avoid corrosion. A stainless-steel tank is also optional.
The whole vehicle control adopts a highly reliable, pollution-free advanced pneumatic system, and all road operation functions can be operated in the cab.The structure is compact and reasonable, the volume of the water tank is large, and the working time is long.
The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low.
A variety of components can be optionally installed: such as single-point dredging device, automatic water cannon, rear upper spray, etc.
